1
Engine displacement
600
2
Year
2004
3
Trim
600 / 700 / 800 CLASSIC TOURING
4
Parts Catalog
CYLINDER (800)
5
Parts Diagram
Parts Catalog
CRANKCASE (800)
by
WATER PUMP/OIL PUMP (800)
CYLINDER (800)
13
14
15
16
17
18
19
20
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
1
CLAMP HOSE SS
7080681
$17,84 Unit Price incl. VAT
2
SCREW (10)
7517398
$6,29 Unit Price incl. VAT
3
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
4
ADAPTER; CARBURETOR; 40 MM
1253327
9999999
Not Available
5
REED BLOCK STUFFER NOK
5433151
9999999
Not Available
6
VALVE REED ASSEMBLY
1201825
9999999
Not Available
7
O-RING LIP SEAL
5411521
9999999
Not Available
8
THERMOSTAT-120 F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
9
COVER-THERMOSTAT M6 BLEED LG
5631391
9999999
Not Available
10
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
11
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
12
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
13
SCREW 8 MM X 1.25 MM X 60 MM
7517534
9999999
Not Available
14
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
15
TEMPERATURE SENSOR
4010398
9999999
Not Available
16
COVER-HEAD 85 SNO 800 LBTY BLK
5631427329
Not Available
17
RUBBER SEAL HEAD
5411294
9999999
Not Available
18
O RING
5410917
$1,56 Unit Price incl. VAT
19
HEAD-CYL 85MM 3/4 DETON
3021426
9999999
Not Available
20
O-RING 4.98 X 5.129 X .07
5412232
$11,54 Unit Price incl. VAT
21
HI-TEMP O-RING; 3.625 X 3.765 X .07
5411675
$41,99 Unit Price incl. VAT
22
CYLINDER-85MM EV W/ DECOM
3021339
9999999
Not Available
23
VALVE-GUILLOTINE 800 DECOM
5133775
2202838
$283,49 Unit Price incl. VAT
24
GASKET-BASE TO CYL EXH VALVE (10)
5812350
5815584
$11,54 Unit Price incl. VAT
25
ASM-BASE EXH VALVE DOM
1202216
9999999
Not Available
26
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
27
BELLOWS-FABRIC POLYESTER
5412399
5414495
$89,24 Unit Price incl. VAT
28
CAP/NUT BELLOWS-EXH VALVE DOM
5631381
5631687
$52,49 Unit Price incl. VAT
29
COMPRESSION SPRING PINK/YELLOW
704178611
Not Available
30
HOUSING WITH BUSHING ASSEMBLY
1202640
$27,29 Unit Price incl. VAT
31
SCREW
7516820
$10,49 Unit Price incl. VAT
32
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
33
CYLINDER BASE METAL GASKET; 800
5812363
9999999
Not Available
34
NUT
7547013
$3,14 Unit Price incl. VAT
35
SCR-M8X1.25X30 HX/FL-YD
7517262
$10,49 Unit Price incl. VAT
35
DETONATION BOSCH SENSOR
2410369
$152,24 Unit Price incl. VAT
36
CONDUIT FLEX(.75 ID)
552139896
Not Available
37
HOSE BYPASS
5411536
9999999
Not Available
38
CLAMP-BYPASS NORMA #24-15
7081030
9999999
Not Available
39
FITTING-3/4NPT-1 IN HOSE BRASS
7052234
9999999
Not Available
40
RETAINER SS.
7080654
9999999
Not Available

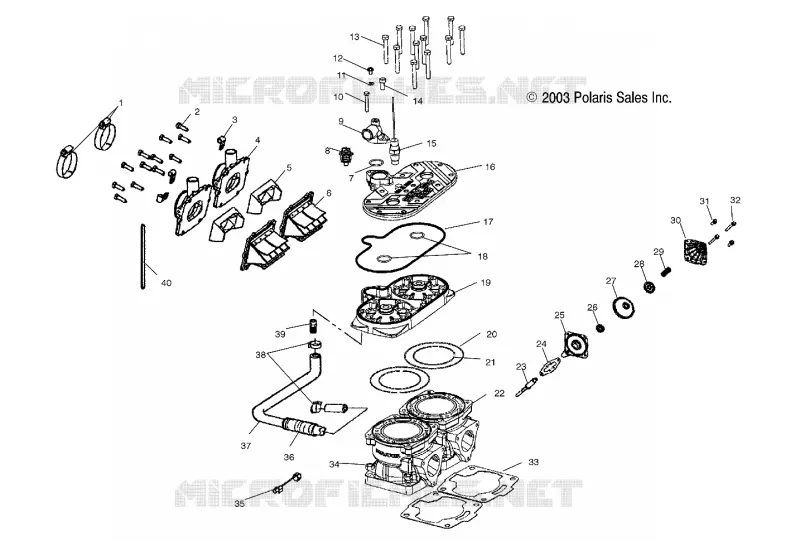

Find the detailed CYLINDER (800) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
