1
Engine displacement
600
2
Year
2004
3
Trim
600 / 700 / 800 CLASSIC TOURING
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
CONSOLE
DRIVEN CLUTCH
-
-
ASM-DRVN CLTCHBSC#216HP
1322433
9999999
Not Available
1
SCR-10-24X.375TTHD TEAM#105099
7518023
9999999
Not Available
2
PLATE-WINDAGE MOVTEAM#430085
5246216
9999999
Not Available
3
SCREW-CAP TORX SFCH1/4-28X.625
3233996
3235592
$10,49 Unit Price incl. VAT
4
RAMP-DRVN(64/44-.65)
5134204
9999999
Not Available
4
RAMP-DRVN(64/42-.65)
5134264
9999999
Not Available
4
RAMP-DRVN(60/42-.75)
5134226
9999999
Not Available
5
EXTERNAL RETAINING RING; 1.500
7710522
$25,19 Unit Price incl. VAT
6
SECONDARY CLUTCH ROLLER
5434534
$89,24 Unit Price incl. VAT
7
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
8
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
9
SPRING-DRVN CLTCH LH RED/SLV
7043061
9999999
Not Available
9
SPRING-DRVN CLTCHLHRED/GRN
7043059
9999999
Not Available
10
WASHER-THRUST
7556227
$41,99 Unit Price incl. VAT
11
SPACER; 1.640 X 3.125 X .062
3234033
9999999
Not Available
12
SCR-1/4-20X1.25 TX
7518024
3236575
$9,44 Unit Price incl. VAT
13
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
14
PLATE-WINDAGE STAT-TEAM#430086
5246217
9999999
Not Available

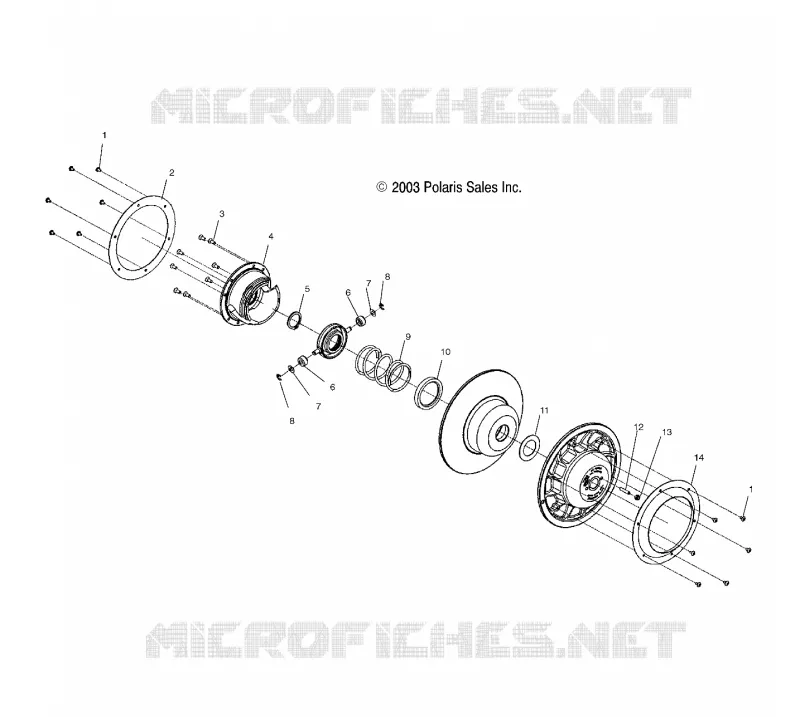

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
