1
Engine displacement
600
2
Year
2004
3
Trim
600 / 700 / 800 CLASSIC TOURING
4
Parts Catalog
DRIVE TRAIN
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
BATTERY BOX
DRIVE TRAIN
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
16
17
18
19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
1
BOLT
7515369
$9,44 Unit Price incl. VAT
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020913
5135621
$13,64 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
DRIVE BELT
3211080
$188,46 Unit Price incl. VAT
7
WASHER
7555917
$4,19 Unit Price incl. VAT
8
WASHER
7555864
$4,19 Unit Price incl. VAT
9
BUSHING
7556509
$3,14 Unit Price incl. VAT
10
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
11
FLANGE RD;RELUBE W/ZERK
5241359
9999999
Not Available
11
FITTING LUB/VEN
7080561
9999999
Not Available
12
JACKSHAFT GASKET; BLACK
5811095
9999999
Not Available
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
BEARING
3514525
$54,59 Unit Price incl. VAT
15
FLANGETTE
5222751
9999999
Not Available
16
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
17
KEY-1/4X3/16X2.75
7721128
9999999
Not Available
18
ASM-JACKSHAFT 15 SPL W/M15 BRG
1332220
9999999
Not Available
19
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
20
KIT-BRAKE DISCFORGED
2202493
9999999
Not Available
21
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
22
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
23
O-RING
5410613
$3,66 Unit Price incl. VAT
24
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT
25
SCR-3/8-16X2.25 HX/CP-G5-Y
7518002
9999999
Not Available
26
BOLT CARRIAGE
7515428
9999999
Not Available
27
ASM-DRIVESHAFT 4DR(SMOOTH)EDGE
1590366
9999999
Not Available
28
FLANGETTE W/ SCREWS ASSEMBLY
1012945
9999999
Not Available
29
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
30
OFFSET FLANGETTE WITH HOLE
5243529
9999999
Not Available
31
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
32
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
33
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

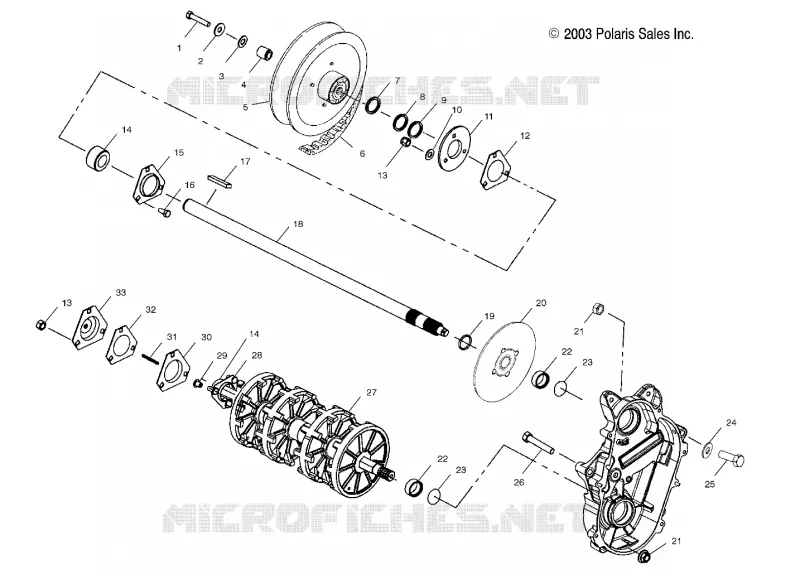

Find the detailed DRIVE TRAIN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
