1
Engine displacement
600
2
Year
2016
3
Trim
600 WIDETRAK IQ
4
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
by
DRIVE TRAIN, SHIFT LINKAGE
DRIVE TRAIN, CLUTCH, SECONDARY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
1
ASM-DRVN CLTCH;TEAM;BSC;LWTSPL
1323185
9999999
Not Available
2
FLAT HEAD SCREW
3235592
$10,49 Unit Price incl. VAT
3
RAMP-DRVN(54/44/36)LWER
5139700
9999999
Not Available
4
RETAINING RING
7710583
$36,74 Unit Price incl. VAT
5
SECONDARY CLUTCH ROLLER
5434534
$89,24 Unit Price incl. VAT
6
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
7
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
8
SPRING-DRVN CLTCHLHRED/BLK
7043058
9999999
Not Available
9
WASHER-THRUST-TEAM#430529
7556728
$36,74 Unit Price incl. VAT
10
WASHER
7556370
$41,99 Unit Price incl. VAT
11
HEX SOCKET SET SCREW; 1/4-20 X 1.25
3234228
3236575
$9,44 Unit Price incl. VAT
12
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
13
BOLT
7515369
$9,44 Unit Price incl. VAT
14
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
15
WASHER-.315/.325X.88X.075 FL-Y
7556216
$9,44 Unit Price incl. VAT
16
SPACER-INPUT SHAFTALUM
5139336
9999999
Not Available
17
WASHER
7555917
$4,19 Unit Price incl. VAT
17
WASHER
7555864
$4,19 Unit Price incl. VAT
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
17
WASHER
7555957
$9,44 Unit Price incl. VAT
18
DRIVE BELT; 12 IN
3211132
$192,14 Unit Price incl. VAT

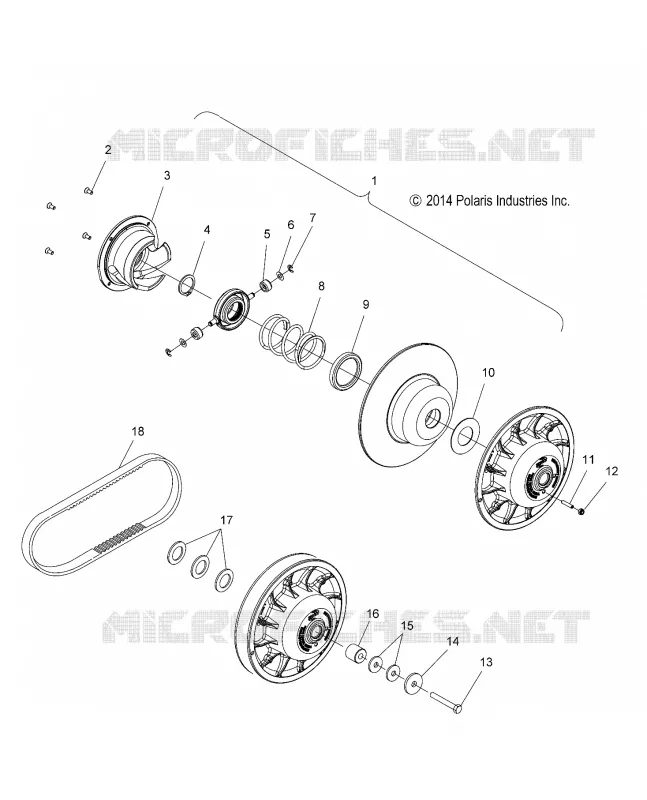

Find the detailed DRIVE TRAIN, CLUTCH, SECONDARY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
