PISTON AND CRANKSHAFT (TRAIL) (4910941094034A) for POLARIS TRAIL - 0860761 from 1986

CYLINDER (600 AND 600 LE) (4910941094033A)

PISTON AND CRANKSHAFT (400) (4910941094035A)

PISTON AND CRANKSHAFT (TRAIL) (4910941094034A)

-

CRANKSHAFT (Incl. 1-11)

3083705

Not Available

1

CRANKSHAFT #1

3083362

Not Available

2

CRANKSHAFT 2 (Incl. 5-6)

3083706

Not Available

3

CRANKSHAFT #3 Substituted by 3084357

3083364

Not Available

4

CONNECTING ROD

3083252

9999999

Not Available

5

PIN; CRANK

3083233

9999999

Not Available

6

PIN CRANK 2

3083456

5141629

$57,74 Unit Price incl. VAT

7

CRANKPIN SPACER

3083277

9999999

Not Available

8

BEARING LGE.END

3083276

9999999

Not Available

9

SPACER CRANKSHAFT

3080447

9999999

Not Available

10

BEARING BALL

3083480

3515063

$60,89 Unit Price incl. VAT

11

BALL BEARING C-4

3083708

9999999

Not Available

12

PISTON

3083545

9999999

Not Available

12

SET PISTON .020/.50MM O/S

3083716

9999999

Not Available

13

PIN PISTON

3083512

9999999

Not Available

14

PISTON RING STANDARD

3083546

9999999

Not Available

14

PISTON RING .020 IN/.5 MM

3083717

9999999

Not Available

15

CLIP PISTON PIN (10)

3083682

9999999

Not Available

16

BEARING SMALL END

3083216

3515064

$25,71 Unit Price incl. VAT

17

NUT

3083093

7547895

$7,34 Unit Price incl. VAT

18

WASHER-SPRING(10)

3083094

7557228

$6,29 Unit Price incl. VAT

19

KEY

3081447

9999999

Not Available

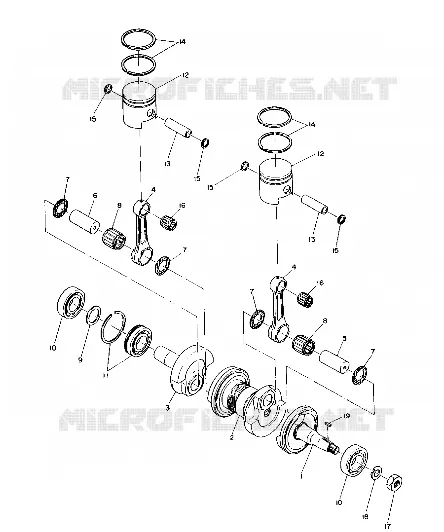

Find the detailed PISTON AND CRANKSHAFT (TRAIL) (4910941094034A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
