PISTON AND CRANKSHAFT (600 AND 600 LE) (4910941094036A) for POLARIS TRAIL - 0860761 from 1986

CYLINDER (TRAIL) (4910941094031A)

MAGNETO (TRAIL) (4910941094037A)

PISTON AND CRANKSHAFT (600 AND 600 LE) (4910941094036A)

1

CRANKSHAFT ASM.

3083476

9999999

Not Available

2

CRANKSHAFT 1 MAG. END

3083342

Not Available

3

CRANKSHAFT MAG SIDE (Incl. 7)

3083478

Not Available

4

CRANKSHAFT PTO SIDE

3083479

9999999

Not Available

5

CRANKSHAFT;PTO END

3083346

9999999

Not Available

6

CONNECTING ROD

3083252

9999999

Not Available

7

PIN-CRANK 1

3083253

9999999

Not Available

8

PIN-CRANK 2

3083254

9999999

Not Available

9

BEARING-LARGE END

3083255

9999999

Not Available

10

SPACER

3083399

9999999

Not Available

11

BEARING BALL

3083480

3515063

$60,89 Unit Price incl. VAT

12

BEARING

3083457

9999999

Not Available

13

BEARING BALL

3083002

9999999

Not Available

14

PISTON .020 O/S Substituted by 3083885 (.020 Over)

3083293

Not Available

14

PISTON Substituted by 3083883 (Standard)

3083348

Not Available

14

SET PISTON .010/.25MM O/S

3083292

9999999

Not Available

15

PIN PISTON WRIST

3083305

9999999

Not Available

16

RING PISTON .020 O/S (2)

3083359

9999999

Not Available

16

RING PISTON .10 O/S

3083358

9999999

Not Available

16

RING PISTON

3083349

9999999

Not Available

17

CLIP PISTON PIN (10)

3083682

9999999

Not Available

18

BEARING SMALL END

3083216

3515064

$25,71 Unit Price incl. VAT

19

SPACER

3083401

9999999

Not Available

20

NUT

3083047

Not Available

21

WASHER

3083048

Not Available

22

KEY

3081447

9999999

Not Available

23

OIL SEAL

3083045

9999999

Not Available

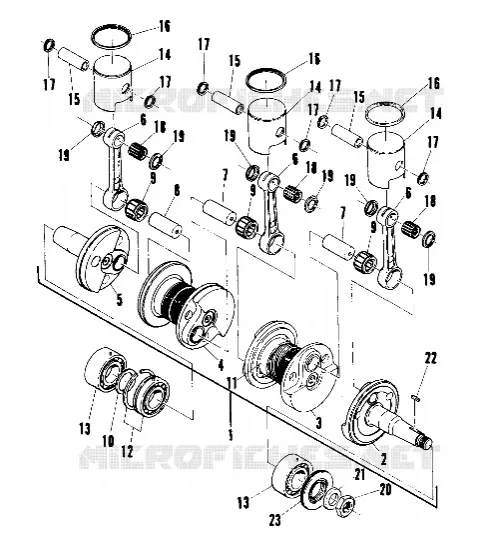

Find the detailed PISTON AND CRANKSHAFT (600 AND 600 LE) (4910941094036A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
