CARBURETOR (600 AND 600 LE) (4910941094049A) for POLARIS TRAIL - 0860761 from 1986

CARBURETOR (TRAIL AND 400) (4910941094048A)

FUEL PUMP (TRAIL AND 400) (4910941094050A)

CARBURETOR (600 AND 600 LE) (4910941094049A)

1

CARB ASM. [No Longer Available] (Incl. 2-32)

3130377

Not Available

2

TOP (Incl. 3)

3130061

Not Available

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

SPRING THROTTLE

3130334

9999999

Not Available

5

PLATE THROTTLE

3130054

9999999

Not Available

6

E RING

3130003

3130508

$12,59 Unit Price incl. VAT

7

NEEDLE JET (6F9-3)

3130378

9999999

Not Available

8

VALVETHROTTLE(3.0)

3130352

9999999

Not Available

8

VALVE THROTTLE-3.5

3130304

9999999

Not Available

9

JET NEEDLE Q-2

3130165

Not Available

10

GUIDE HOLDER

3130199

$52,49 Unit Price incl. VAT

11

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

12

CARBURETOR

3130326

Not Available

13

SCREW THROTTLE STOP

3130009

9999999

Not Available

14

SPRING

3130010

$18,89 Unit Price incl. VAT

15

SCREW AIR Substituted by 3130011

3130233

Not Available

16

SPRING AIR ADJUST

3130012

9999999

Not Available

17

JET; PILOT; #35

3130340

9999999

Not Available

18

WASHER

3130047

$9,44 Unit Price incl. VAT

19

PLATE

3130243

9999999

Not Available

20

VALVE ASMNEEDLE

3130046

9999999

Not Available

21

RING CARB

3130232

9999999

Not Available

22

HOSE Substituted by 3130241

3081868

Not Available

23

ARM FLOAT

3130048

9999999

Not Available

24

FLOAT PIN

3130240

3130361

$18,89 Unit Price incl. VAT

25

FLOAT CHAMBER GASKET

3130236

$20,99 Unit Price incl. VAT

26

FLOAT ASM Substituted by 3130021

3080534

Not Available

27

CAP

3130237

$8,39 Unit Price incl. VAT

28

O-RING

3130239

9999999

Not Available

29

SCREW GUIDE Substituted by 3130432

3130238

Not Available

30

HEX HEAD MAIN JET

3130129

9999999

Not Available

31

SCREW

3130056

9999999

Not Available

32

PLATE

3130242

Not Available

33

CAP VACUUM FIT

3130379

9999999

Not Available

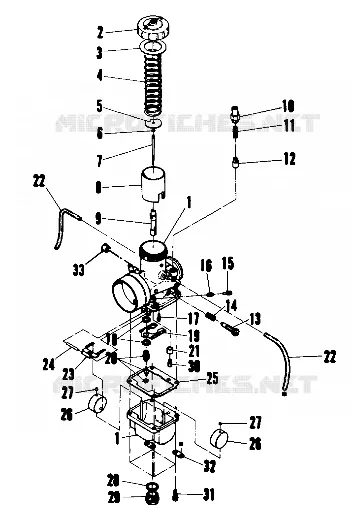

Find the detailed CARBURETOR (600 AND 600 LE) (4910941094049A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
