1
Engine displacement
autre
2
Year
1995
3
Trim
EURO STORM SKS - E950582
4
Parts Catalog
MASTER CYLINDER STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B002)
5
Parts Diagram
Parts Catalog
HOOD
by
FRONT SUSPENSION AND SKI STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B003)
MASTER CYLINDER STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B002)
1
SCREW W/WASHER
7512050
9999999
Not Available
2
COVER MASTER CYL.
5630338
9999999
Not Available
3
MASTER CYLINDER GASKET
5410527
9999999
Not Available
4
WASHER; BAFFLE
1930662
9999999
Not Available
5
BAFFLE MASTER CYL.
1930673
9999999
Not Available
6
HOUSING MASTER CYL.SCAN (Euro)
5130961
Not Available
6
MASTER CYLINDER HOUSING
5130955
9999999
Not Available
7
SEAL SIGHT GLASS
1930660
9999999
Not Available
8
GLASS SIGHT MASTER CYL.
1930710
Not Available
9
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
10
CLAMP MASTER CYL.
5630342
9999999
Not Available
11
WASHER
7555708
9999999
Not Available
12
SPRING; MASTERCYL.
7041311
9999999
Not Available
13
U-PACKING SEAL
5410164
9999999
Not Available
14
PISTON MASTER CYL.
5020679
9999999
Not Available
15
O-RING
5410163
$3,14 Unit Price incl. VAT
16
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
17
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
18
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
19
SCREW
7511866
$9,44 Unit Price incl. VAT
20
BUSHING PK.BRAKE LEVER
5020545
9999999
Not Available
21
LEVER PARK.BRAKE
5222669
9999999
Not Available
22
SPRING PK.BRAKE
7041229
9999999
Not Available
23
LEVER BRAKE
5630409
9999999
Not Available
24
BUSHING BRAKE LEVER
5332931
9999999
Not Available
25
BOLT BRAKE LEVER
7512287
9999999
Not Available
26
MASTER CYL.ASM3/4"
2050070
9999999
Not Available
26
MASTER CYL.ASMW/GLASS
2050071
9999999
Not Available

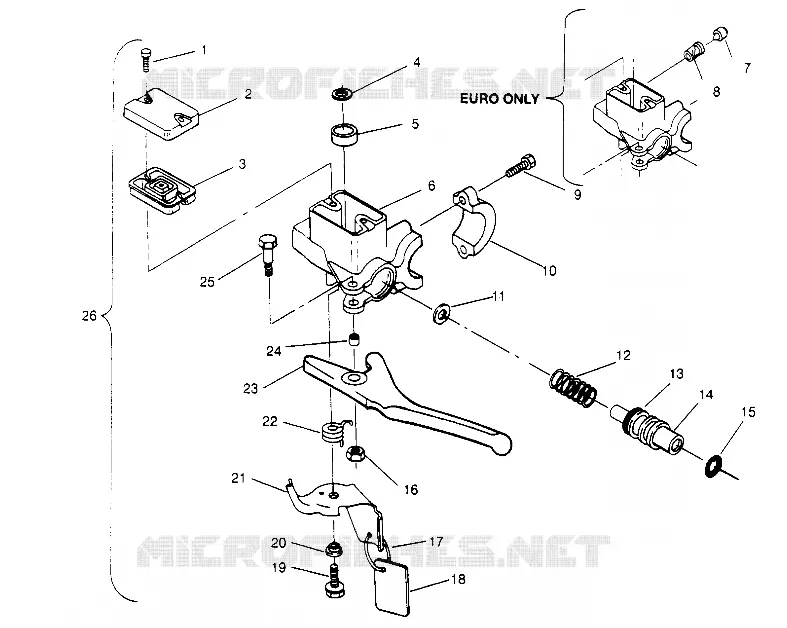

Find the detailed MASTER CYLINDER STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
