1
Engine displacement
autre
2
Year
1995
3
Trim
EURO STORM SKS - E950582
4
Parts Catalog
STEERING ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EU (4929012901B006)
5
Parts Diagram
Parts Catalog
STEERING
by
BRAKE STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STORM SKS (4929012901B007)
STEERING ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EU (4929012901B006)
1
CLIP
7080278
9999999
Not Available
2
HOOP STRG (94STORM)
1011998067
Not Available
3
RIVET
7661637
$2,09 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
BOLT-CARRIAGE
7512275
9999999
Not Available
6
LIMITER;TORQUE;PTO
1011997067
Not Available
7
NUT JAM
7542432
$7,34 Unit Price incl. VAT
8
STOP RUBBER TORQUE
3110037
Not Available
9
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
10
NUT(10)
7546803
Not Available
11
ROD TIE BLACK
5332713067
Not Available
11
TIEROD
5020636067
Not Available
12
POP RIVET
7621303
9999999
Not Available
13
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
13
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
14
ROD END; RH
7060152
7060167
$99,74 Unit Price incl. VAT
14
ROD END; LH
7060151
7060166
$99,74 Unit Price incl. VAT
15
PLATE BOOTSEAL BLK.
5210904067
Not Available
16
BOOT-TIE ROD
5410328
9999999
Not Available
17
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
BLOCK; CTR.STRG.
5130889
9999999
Not Available
20
BUSHING
3563907
$7,34 Unit Price incl. VAT
21
NUT
7542323
9999999
Not Available
22
DAMPENER RUBBER ENG.8M
3110035
Not Available
23
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
24
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
25
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
26
STEERING WELDCTR.
1822106067
Not Available
27
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
28
BUSHING SPACER
5010282
9999999
Not Available
29
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
30
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
31
BOLT
7512404
$7,34 Unit Price incl. VAT
32
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
33
WASHER
7555716
$3,14 Unit Price incl. VAT
34
DAMPENER RUBBER ENG.5/16
3110036
Not Available
35
ROD DRAG LINK
5333144
Not Available
36
BOLT
7512679
9999999
Not Available
37
WASHER
7555721
$2,09 Unit Price incl. VAT
38
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

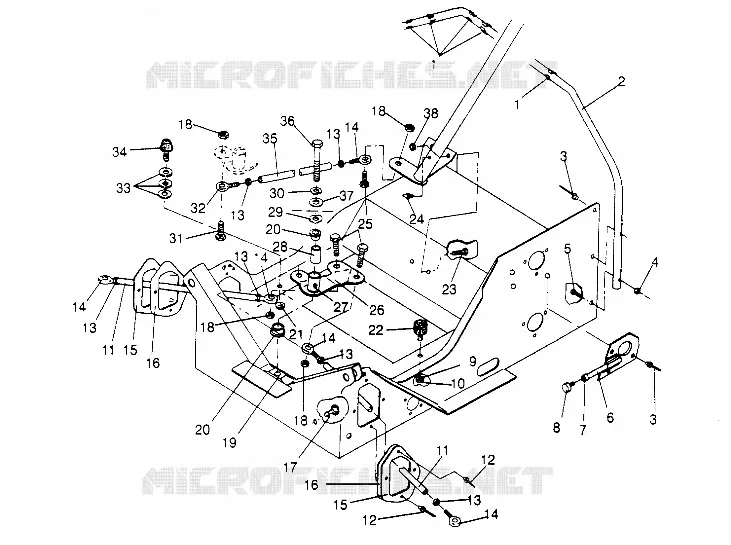

Find the detailed STEERING ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EU (4929012901B006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
