FRONT SUSPENSION AND SKI STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B003) for POLARIS EURO STORM SKS

MASTER CYLINDER STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B002)

COOLING SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901B009)

RIVET

7661637

$2,09 Unit Price incl. VAT

BRACE BLKHD/STRG BLK.

5211589067

Not Available

STRAP SPACER TOP

5211344

$13,64 Unit Price incl. VAT

STRAP SPACER BOTTOM

5211345

9999999

Not Available

BOLT

7512551

9999999

Not Available

BOLT

7512656

9999999

Not Available

BOLT(10)

7515515

9999999

Not Available

NUT; NYLOC

7542453

7542439

$2,09 Unit Price incl. VAT

TOP RETAINER

5220225

$19,94 Unit Price incl. VAT

SPRING;IFS;CHROME

7041287156

Not Available

SPRING PROTECTOR SLEEVE

5431032

9999999

Not Available

CAM ADJUSTING SPRING

5630334

9999999

Not Available

SHOCK GAS CAM/IFS ADJ.

7041390

9999999

Not Available

SHOCK GAS/CAM IFS ADJ. (SKS)

7041393

Not Available

BOLT

7515491

7515433

$3,14 Unit Price incl. VAT

WASHER

7555851

7555832

$4,19 Unit Price incl. VAT

BAR SWAY BLACK

5224237067

Not Available

BAR; SWAY; (BLK.)

5224240067

Not Available

NUT; FLEXLOC B

7542456

9999999

Not Available

ARM STEERING BLK. Substituted by 1012423-067

5222873067

Not Available

STOP STRG LH BLK.

5222874067

Not Available

STOP STRG RH BLK.

5222875067

Not Available

BUSHING-SWAYBAR

5410383

9999999

Not Available

SWAY BAR BUSHING

5410386

9999999

Not Available

NUT; FLEXLOC

7542452

7542411

$6,29 Unit Price incl. VAT

RIVET (50)

7621477

9999999

Not Available

SLIDE (FR.SUSP.)

5410385

9999999

Not Available

SLIDE-SWAYBAR

5410384

9999999

Not Available

WASHER

7555721

$2,09 Unit Price incl. VAT

TUBE TRAILING ARM

5010187

9999999

Not Available

PIVOT-TRAILING ARM

5410382

9999999

Not Available

BOLT

7512557

9999999

Not Available

ARM TRAIL RH.

1822188

9999999

Not Available

ARM TRAIL LH.

1822187

9999999

Not Available

FLANGE BUSHING

3573909

$4,19 Unit Price incl. VAT

BUSHING

7556509

$3,14 Unit Price incl. VAT

FLANGED BUSHING

3574208

$6,29 Unit Price incl. VAT

SPINDLE BLK.

6230073067

Not Available

STOP RUBBER

5521276

9999999

Not Available

SCREW

7515462

9999999

Not Available

SKAG PR.3 CARBIDE(STEEL SKI)

2870693

$99,74 Unit Price incl. VAT

SKI WELD BLK

1820332067

Not Available

NUT; CASTLE

7542457

7542438

$3,14 Unit Price incl. VAT

PIN; COTTER

7661209

7661205

$1,56 Unit Price incl. VAT

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

BOLT

7515492

7515540

$9,44 Unit Price incl. VAT

SUBSTITUTED BY 7512404

7515490

$7,34 Unit Price incl. VAT

RADIUS ROD BUSHING

5010127

$12,59 Unit Price incl. VAT

BUSH; RADIUS ROD PIVOT; OUT

5431486

9999999

Not Available

ROD RAD.LOW.

1822123067

Not Available

ROD RAD.LOW.(STORM)

1822102067

Not Available

ROD RAD.UPPER(STORM)

1822099067

Not Available

ROD RAD.UP.

1822121067

Not Available

NUT JAM(10)

7542520

9999999

Not Available

ROD END; RH

7060155

9999999

Not Available

NUT FLEXLOCK

7542503

9999999

Not Available

BRACE PAN

5223997067

Not Available

NUT FLEXOC;

7542703

9999999

Not Available

ROD END;RH

7060156

7061071

$99,74 Unit Price incl. VAT

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

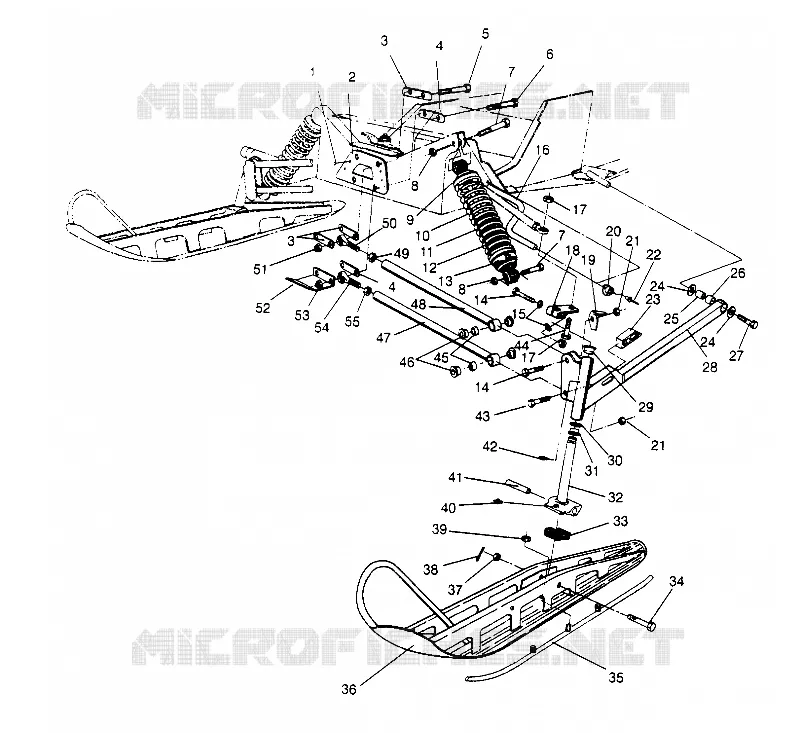

Find the detailed FRONT SUSPENSION AND SKI STORM 0950782, STORM SKS 0950582, EURO STORM E950 (4929012901B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
