SCREW
7517659
9999999
Not Available
2
FAN AND MOTOR ASSEMBLY; SPAL
2410123
$289,79 Unit Price incl. VAT
3
CLIP U
7670111
9999999
Not Available
4
FAN SHROUD
5434043
9999999
Not Available
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
7
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
8
SURGE TANK
5433410
9999999
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
11
DESC NOT_AVAILABLE
8450003600
Not Available
12
SPACER
5020937
9999999
Not Available
13
MOUNT; RUBBER
3110032
9999999
Not Available
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
17
UPPER ENGINE HOSE
5411985
9999999
Not Available
18
GUARD-HOSE 12
5521511
9999999
Not Available
19
CLAMP-ROTO CLIP
7080826
9999999
Not Available
20
THERMAL HARNESS SENSOR
4010161
9999999
Not Available
21
PRESSURE CAP 13 LB
1240093
9999999
Not Available
22
RADIATOR
1240090
Not Available
23
BOLT
7512240
9999999
Not Available
24
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
25
VALVE-PLASTIC DRAIN
7052296
9999999
Not Available
26
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
27
CABLE TIE MOUNT; .25
7080965
$13,64 Unit Price incl. VAT
28
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
29
PLASTIC HOSEGUARD 18
5521550
9999999
Not Available
30
LOWER ENGINE HOSE
5411989
9999999
Not Available

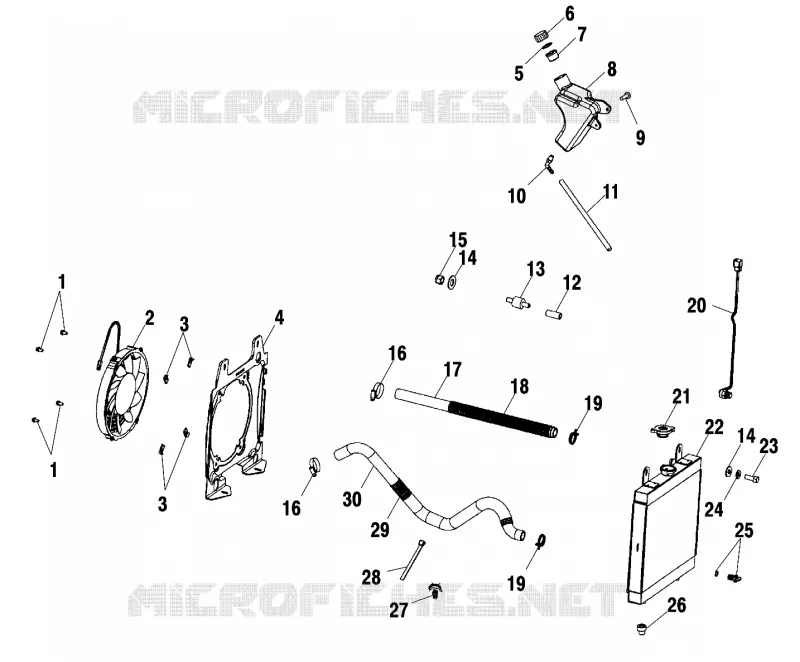

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
