Engine displacement
500
2
Year
2002
3
Trim
SCRAMBLER 500 4X4 - A02BG50AA
4
Parts Catalog
FRONT BUMPER SHIELDS
5
Parts Diagram
Parts Catalog
CONTROL PANEL
by
DECALS
FRONT BUMPER SHIELDS
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
15
15
15
16
17
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
15
15
15
16
17
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
1
SHIELD-SPLASH REAR
5434162
9999999
Not Available
2
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
3
SHIELD-SPLASH GEN3 FRONT
5434161
9999999
Not Available
4
SCREW
7522026
9999999
Not Available
5
SHIELD-SPLASH GEN3 LH BLACK
5245415067
Not Available
6
SCREW
7517386
$2,09 Unit Price incl. VAT
7
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
8
BOLT
7512329
$7,34 Unit Price incl. VAT
9
PLUG FRAME FOAM
5811675
9999999
Not Available
10
NUT
7547071
9999999
Not Available
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
Shield Radiator (AC)
5245744
Not Available
13
SCREW
7512252
9999999
Not Available
14
BUMPER; FRONT; MEDIUM GLOSS BLACK
1012773067
Not Available
14
Bumper Front (AC)
1013654
Not Available
15
SKID PLATE BUMPER
5432378070
Not Available
15
PLATE-FRT ANNODIZED
5245745
9999999
Not Available
16
BOLT-CARRAGE 1/4-20X2.0 Z
7517960
9999999
Not Available
17
WASHER
7555827
$7,34 Unit Price incl. VAT
18
RIVET-1/4MULTIGRIP .08-.35 B
7661121
9999999
Not Available
19
BRKT RADIATOR SHIELD BLK
5242694067
Not Available
20
SHIELD-RADIATOR SIDERHSTBLK
5245343067
Not Available
21
SCREW
7515399
9999999
Not Available
22
SHIELD-RADIATOR SIDE;LH;ST;BLK
5245342067
Not Available
23
SHIELD-UPPER RADIATORSTBLK
5245344067
Not Available
24
HEATSINK RECT.
5131036
9999999
Not Available
25
RECTIFIER FULL WAVE
4060173
2203636
$325,49 Unit Price incl. VAT
26
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
27
SPLASH GUARD RIGHT
5434085
9999999
Not Available

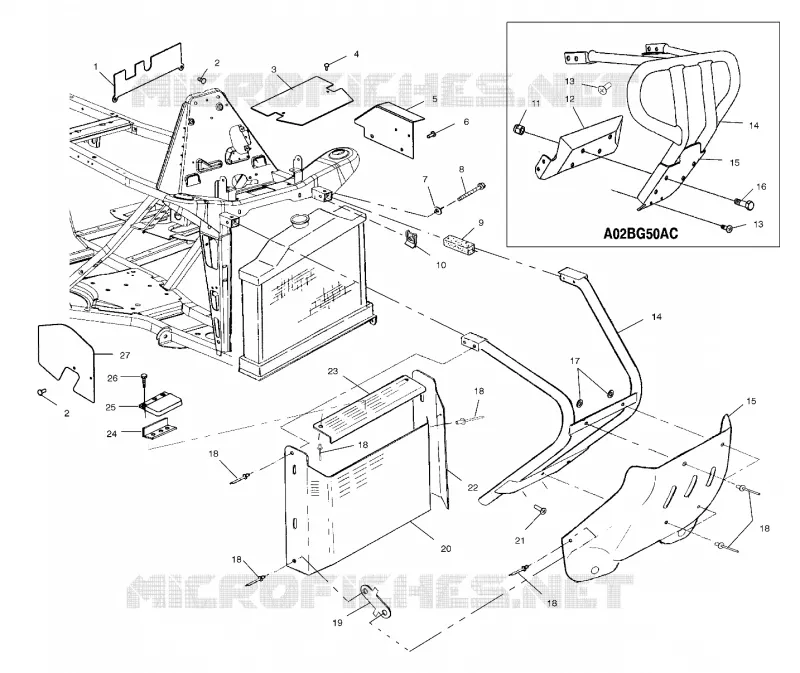

Find the detailed FRONT BUMPER SHIELDS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
