1
Engine displacement
500
2
Year
2002
3
Trim
SCRAMBLER 500 4X4 - A02BG50AA
4
Parts Catalog
STEERING POST
5
Parts Diagram
Parts Catalog
HANDLEBAR HEADLIGHT
by
CLUTCH COVER
STEERING POST
1
1
2
3
3
4
5
5
6
6
6
6
7
7
8
9
10
11
12
1
1
2
3
3
4
5
5
6
6
6
6
7
7
8
9
10
11
12
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
3
BUSHING-UPPER 1 IN
5433866
5439731
$12,59 Unit Price incl. VAT
4
STEERING POST VL;BLK
1821112067
Not Available
5
BRKT-STEERING POST
5132679
9999999
Not Available
5
BRKT UP.STRG.BUSH BLK.
5222999067
Not Available
6
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
6
BOLT
7515321
9999999
Not Available
7
BUSHING 1 X 1.5 X .145
7556162
$7,34 Unit Price incl. VAT
8
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
9
BEARING-1XM52XM15 SPH
3514352
3514617
$54,59 Unit Price incl. VAT
10
NUT-SLOTTED HEX1-14-HX
7547158
9999999
Not Available
11
PIN; COTTER
7661633
9999999
Not Available
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT

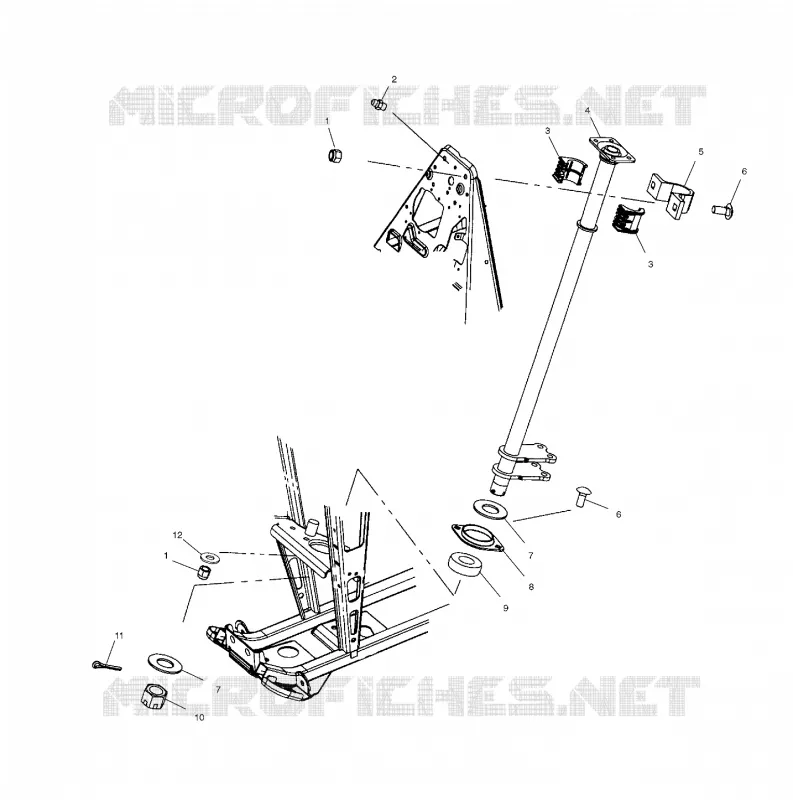

Find the detailed STEERING POST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
