1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 XCR - E931760
4
Parts Catalog
REAR TORQUE ARM 440 XCR 0941760 (4925182518022A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 440 XCR 0941760 (4925182518021A)
by
DRIVE CLUTCH ASSEMBLY 440 XCR 0941760 (4925182518023A)
REAR TORQUE ARM 440 XCR 0941760 (4925182518022A)
1
ARM R.TORQUE BLK.
1540793067
Not Available
2
SHAFT R.TORQUE ARM
5020727
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
5
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
6
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
7
SPRING RH R.SUSP BLK.
7041249067
Not Available
7
SPRING LH R.SUSP BLK.
7041248067
Not Available
8
TUBE SPRING
5521234
9999999
Not Available
9
COLLAR-BRG. LOCK
5010155
9999999
Not Available
10
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
11
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
12
CARRIER WHEEL
1543023
9999999
Not Available
13
BUSHING
7556509
$3,14 Unit Price incl. VAT
14
BOLT
7512247
9999999
Not Available
15
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
16
STRAP LIMITER
5410587
9999999
Not Available
17
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
18
NUT FLEXLOC
7542402
9999999
Not Available
19
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
20
SPACER R.PIVOT ARM
5333026
9999999
Not Available
21
ROD; SUSP;BLK.
1540792067
Not Available
22
SPACER
5333028
9999999
Not Available
23
SCREW
7512463
9999999
Not Available
24
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
25
BOLT
7512329
$7,34 Unit Price incl. VAT
26
BUSHING
5430537
$7,34 Unit Price incl. VAT
27
BUSHING R.SHOCK
5333030
9999999
Not Available
28
SHOCK GAS REAR
7041347
Not Available
29
SHAFT MTG REAR
5020570
9999999
Not Available
30
BUSHING 1.40
5020657
9999999
Not Available
31
BUSHING SHOCK .340
5431542
9999999
Not Available

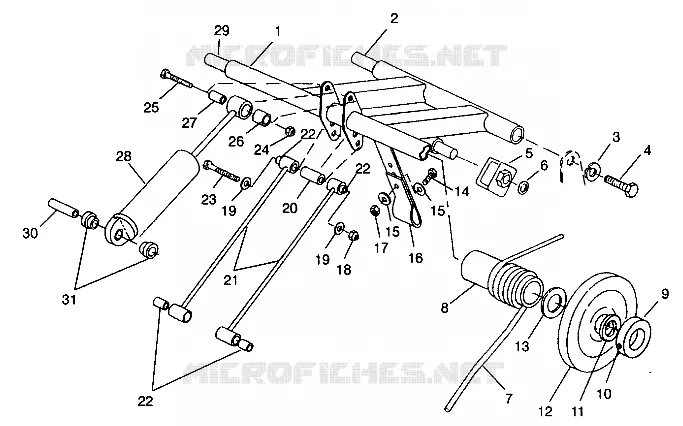

Find the detailed REAR TORQUE ARM 440 XCR 0941760 (4925182518022A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
