1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 XCR - E931760
4
Parts Catalog
TUNNEL ASSEMBLY 440 XCR 0941760 (4925182518001A)
5
Parts Diagram
Parts Catalog
by
SEAT GAS TANK ASSEMBLY 440 XCR 0941760 (4925182518002A)
TUNNEL ASSEMBLY 440 XCR 0941760 (4925182518001A)
1
DECAL TRACK/SEAT(CPSC) (Silver)
7074255
Not Available
2
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
3
RIVET
7621418
$2,09 Unit Price incl. VAT
4
PANEL TUNNEL-BACK
5220478067
Not Available
5
BUMPERREARBLK.
5224334067
Not Available
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
SCREW
7511863
9999999
Not Available
8
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
9
CAP BUMPER BLK.
5430930070
Not Available
10
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
11
BOLT
7512240
9999999
Not Available
12
RIVET (50)
7661829
9999999
Not Available
13
RIVET (10)
7661825
9999999
Not Available
14
BRKT RH R.SUSP.
1011858067
Not Available
14
BRKT LH R.SUSP
1011857067
Not Available
15
EXTRUSION CLUTCHGUARD
5521238
9999999
Not Available
16
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
17
FOOTREST ASM LH
1011861
Not Available
17
FOOTREST ASM RH BLK.
1011892
Not Available
18
RIVET(10)
7621222
9999999
Not Available
19
SNAP-MALE
7080227
9999999
Not Available
20
BRKT F.SUSP. BLK.
5211323067
Not Available
21
BRACE;TUNNEL REINF.
5240265
5240242
Not Available
22
TUNNEL ASM BLK (XCR) (Incl. 4 14 20)
1011974
Not Available
23
BULKHEAD (94 XCR)
1011973067
Not Available
24
RIVET
7661637
$2,09 Unit Price incl. VAT
25
GUARD
5223789
Not Available
26
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
27
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
28
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
29
SCREW
7512307
$7,34 Unit Price incl. VAT
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
RIVET
7621452
9999999
Not Available
32
DECAL TOP TUNNEL STRIP
7073978
Not Available
33
BRKT; TOOL BOX
5220973
9999999
Not Available
34
STRIP-WEAR
5510130
9999999
Not Available

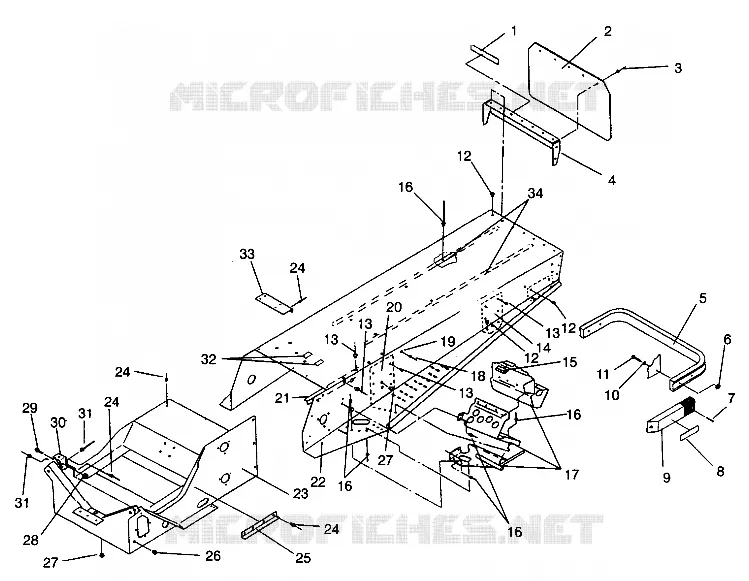

Find the detailed TUNNEL ASSEMBLY 440 XCR 0941760 (4925182518001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
