1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 XCR - E931760
4
Parts Catalog
BRAKE 440 XCR 0941760 (4925182518017A)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER 440 XCR 0941760 (4925182518010A)
by
CHAINCASE ASSEMBLY 440 XCR 0941760 (4925182518018A)
BRAKE 440 XCR 0941760 (4925182518017A)
1
BOLT
7515521
$7,34 Unit Price incl. VAT
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
4
BRKT ROPE GUIDE BLK.
5240171067
Not Available
5
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
6
RIVET (50)
7621477
9999999
Not Available
7
KIT CALIPER BRKT.
1930733
9999999
Not Available
8
KIT PISTON SEAL
1930734
9999999
Not Available
9
SEAL
2200466
$62,99 Unit Price incl. VAT
10
KIT CLIP SPRING
2200467
9999999
Not Available
11
SWITCH STOPLIGHT
4110135
9999999
Not Available
12
KIT; BRAKE PAD
1930723
9999999
Not Available
12
KIT H.D.BRAKEPAD TOP MT.
2200459
9999999
Not Available
13
CALIPER ASMBRAKE(LIQ)
1930719
9999999
Not Available
14
CALIPER WATER-COOLED
1930736
9999999
Not Available
15
LINE BRAKE
1930696
Not Available
16
KIT INLET
1930735
9999999
Not Available
17
GASKET BRK.COOLER
2201024
9999999
Not Available
17
COOLER WATER BRAKE
1930728
9999999
Not Available
18
PK/4 SCREW SET
1930729
9999999
Not Available

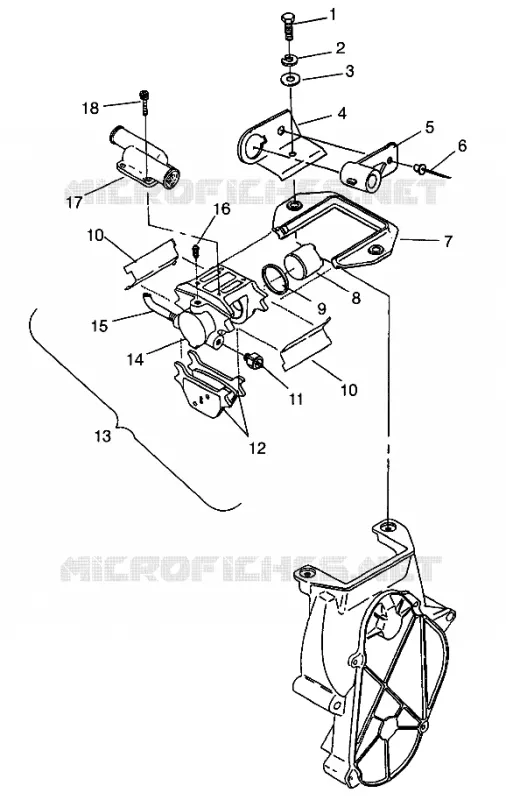

Find the detailed BRAKE 440 XCR 0941760 (4925182518017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
