1
Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
WINCH
5
Parts Diagram
Parts Catalog
PISTON CYLINDER
by
OIL PUMP AND WATER PUMP
WINCH
1
2
3
4
5
6
7
8
9
10
1
1
2
3
4
5
6
7
7
8
8
9
10
1
SCR-1/4-20X1.5 HXSOC CS-B
7518304
9999999
Not Available
2
Asm. Switch Winch (Incl. 1 3)
2410712
Not Available
3
Spacer Master Cylinder Clamp
5133010
Not Available
4
HARNESS-WINCH FRONT
2461220
9999999
Not Available
5
Asm. Winch w/Cable
2202643
Not Available
6
SCREW
7515399
9999999
Not Available
7
PANEL-BUMPER FR BK
5436044070
Not Available
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
Asm. Contactor Winch
2410711
Not Available
10
BOLT
7512247
9999999
Not Available

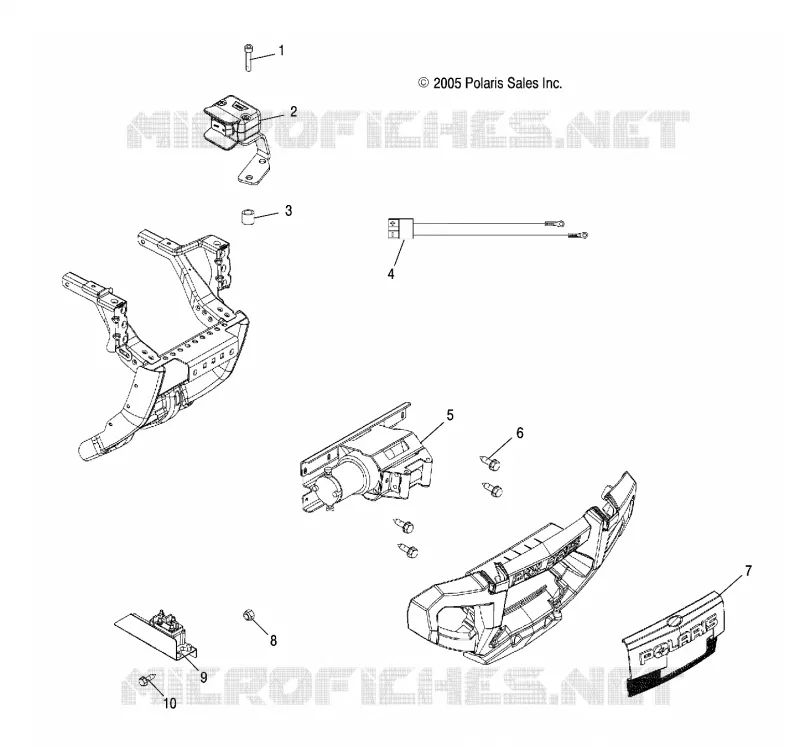

Find the detailed WINCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
