1
Engine displacement
600
2
Year
2016
3
Trim
600 WIDETRAK IQ
4
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, CLUTCH GUARD ASM.
by
DRIVE TRAIN, GEARCASE (1 OF 2)
DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM.
1
2
2
3
4
5
6
7
7
7
7
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
2
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
3
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
4
BEARING-FGR205 25MM SPI
3514667
$141,74 Unit Price incl. VAT
5
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
6
JACKSHAFT WIDE
6230393
9999999
Not Available
7
DRIVE SHAFT ASSEMBLY
1590478
$860,99 Unit Price incl. VAT
7
COUPLER W/ GREASE ZERK ASM 19 TOOTH
1332260
$325,49 Unit Price incl. VAT
7
GREASE ZERK
7080437
9999999
Not Available
7
BEARING-25MM SPH OD LUBE
3514448
3514617
$54,59 Unit Price incl. VAT
7
FLANGETTE W/ SCREWS ASSEMBLY
1012945
9999999
Not Available
8
PICKUP WHEEL; SPEEDO; 9 TOOTH
5136619
$62,99 Unit Price incl. VAT
9
BOLT-5/16-18X1-1/2 HXFLNG;P-30
7518425
$7,34 Unit Price incl. VAT
10
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
11
OFFSET FLANGETTE WITH HOLE
5243529
9999999
Not Available
12
HOUSING-DRIVE PICKUP
5251857
9999999
Not Available
13
O-RING
5410630
9999999
Not Available

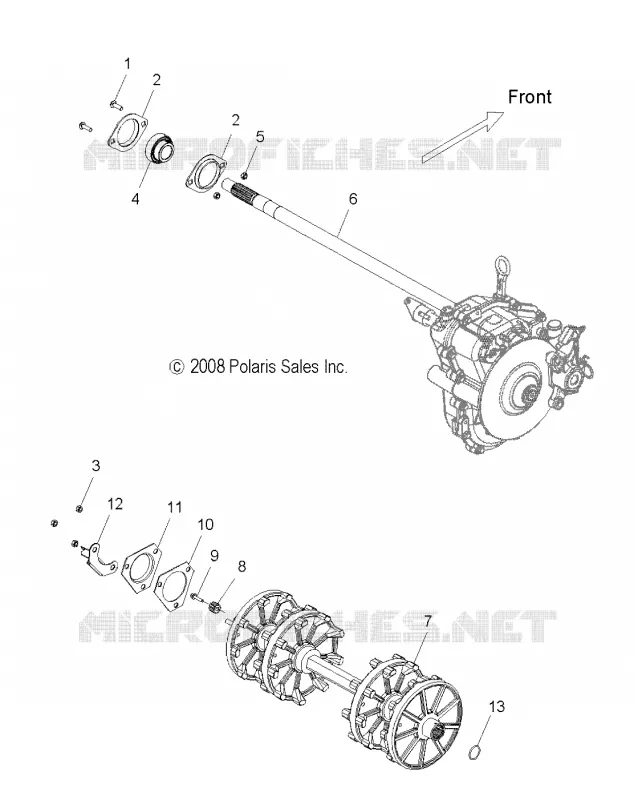

Find the detailed DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
