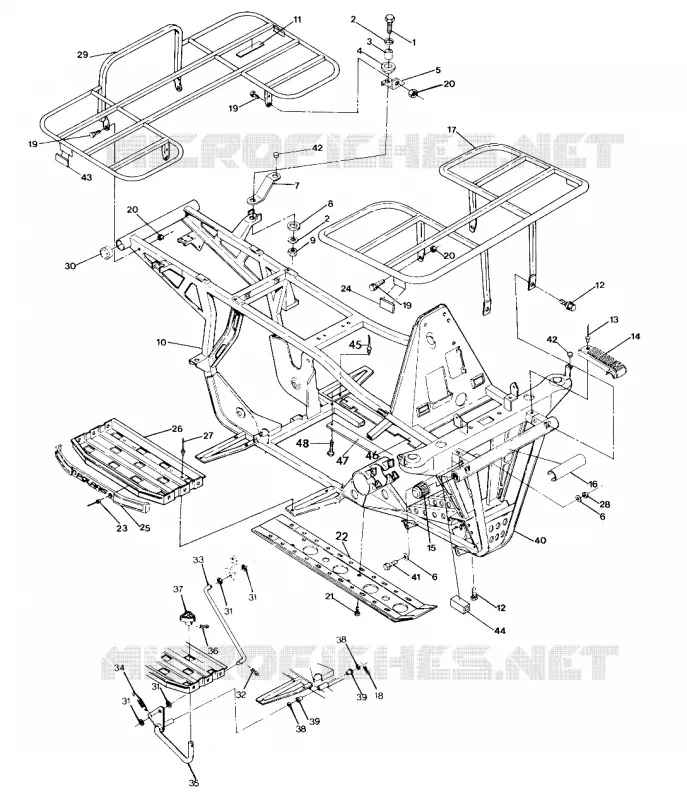

FRAME ASSEMBLY W/ RACKS 250 4X4 / W928127 (4922872287A007)
5
Parts Diagram
Parts Catalog
BODYWORK 250 4X4 / W928127 (4922872287A005)
by
ENGINE MOUNTS EXHAUST 250 4X4 / W928127 (4922872287A009)
FRAME ASSEMBLY W/ RACKS 250 4X4 / W928127 (4922872287A007)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
29
30
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
29
30
1
2
2
3
4
5
5
5
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
19
20
20
20
21
22
23
24
25
26
26
26
26
27
28
29
30
31
31
31
31
32
33
34
35
36
37
38
38
39
39
40
41
42
42
43
44
46
47
1
FLANGED SCREW
7515304
9999999
Not Available
1
PAD; HANDLEBAR
5810379
9999999
Not Available
2
WASHER
7555716
$3,14 Unit Price incl. VAT
2
BOLT
7512286
7515197
$2,09 Unit Price incl. VAT
3
BUSHING
5010192
$12,59 Unit Price incl. VAT
3
MOUNT HDLBR. PAD
5220946
9999999
Not Available
4
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
4
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
5
TUBE HDLBR BLACK
5224316067
Not Available
5
BRKT LH SUPPORT RACK
5220899067
Not Available
5
BRKT RH SUPPORT RACK
5220901067
Not Available
6
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
DECAL O#RIDE SW.(4X4) Substituted by 7076273
7072827
Not Available
7
SUPPORT FENDER; REAR; MEDIUM GLOSS BLACK
5220902067
Not Available
7
MASTER CYL.ASM(ATV)
2050066
2050073
$456,74 Unit Price incl. VAT
8
SWITCH; LH; HBAR
4110142
9999999
Not Available
8
WASHER RUBBER
5410436
9999999
Not Available
9
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
GRIP; HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
10
FRAME SQUARE(91#4X4#) [No Longer Available]
1040253067
Not Available
10
SCREW
2010055
9999999
Not Available
11
BRACKET SPEEDO
5222269067
Not Available
11
PAD
5810455
$6,29 Unit Price incl. VAT
12
SCREW
7512252
9999999
Not Available
12
CLIP
7080278
9999999
Not Available
13
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
RIVET(10)
7621229
9999999
Not Available
14
HAIRPIN COTTER
7660701
9999999
Not Available
14
COVER BRKT BUMPER MT.
5431023
9999999
Not Available
15
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
15
BUMPER CAP FRONT BONNIE BLUE
5431013157
Not Available
16
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
16
DECAL F.SUSP.
7073455
Not Available
17
CABLE; SPEEDOMETER
3280130
9999999
Not Available
17
RACK FRT.BLK.
2670135067
Not Available
18
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
18
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
19
SCREW
7515355
9999999
Not Available
19
SEAL SPEEDO.CABLE
3280132
9999999
Not Available
20
NUT NYLOK
7542327
9999999
Not Available
20
ADAPTER;DRIVE;(1:1.2);ATV
3280128
9999999
Not Available
21
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
21
BOLT
7512232
$2,09 Unit Price incl. VAT
22
GUARD ROCK BLK.
5222272067
Not Available
22
WASHER
7555725
9999999
Not Available
23
KEY SQUARESPEEDO.
3280134
9999999
Not Available
23
RIVET (10)
7661825
9999999
Not Available
24
REFLECTOR ASSEMBLY; AMBER
2670134
$19,94 Unit Price incl. VAT
24
SEAL ANGLE DRIVE
3280131
9999999
Not Available
25
TRIM FOOTREST
5431484
9999999
Not Available
25
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
26
PAD FOOT LH.
1040189
9999999
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
FOOTPAD;RH;(ATV)
1040275
1040275-117
Not Available
27
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
27
MOUNT SPEEDOMETER
5410546
9999999
Not Available
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
28
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
28
SPEEDOMETER ATV MPH
3280129
9999999
Not Available
29
THROTTLE CONTROL ASM.(4X4)
2010144
2010151
Not Available
29
RACKREARBLK.
2670136067
Not Available
30
BOLT
7512265
9999999
Not Available
30
CAP; BUMPER; 4 WHL.
5430823
9999999
Not Available
31
WASHER
7555827
$7,34 Unit Price incl. VAT
32
PIN; COTTER
7661103
9999999
Not Available
33
ROD;BRAKE LINKAGE
5224385
5224447
Not Available
34
SPRING
7042029
$10,49 Unit Price incl. VAT
35
PEDAL; BRAKE
1910054067
Not Available
36
PIN SPIRAL
7661416
9999999
Not Available
37
PEDAL FOOT
5130715067
Not Available
38
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
39
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
40
BUMPER FR (BLK.)
2670113067
Not Available
41
BOLT
7512329
$7,34 Unit Price incl. VAT
42
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
43
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
44
PLUG; FRAME
5810467
9999999
Not Available
46
GUARD CLUTCH INNER
5211359067
Not Available
47
GUARD CLUTCH OUTER
5222860067
Not Available

Find the detailed FRAME ASSEMBLY W/ RACKS 250 4X4 / W928127 (4922872287A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for TRAIL BOSS 4X4 - W928127

BODYWORK 250 4X4 / W928127 (4922872287A005)

BODYWORK 250 4X4 / W928127 (4922872287A005)

for TRAIL BOSS 4X4 - W928127 from 1992

FRAME ASSEMBLY W/ RACKS 250 4X4 / W928127 (4922872287A007)

FRAME ASSEMBLY W/ RACKS 250 4X4 / W928127 (4922872287A007)

for TRAIL BOSS 4X4 - W928127 from 1992

ENGINE MOUNTS EXHAUST 250 4X4 / W928127 (4922872287A009)

ENGINE MOUNTS EXHAUST 250 4X4 / W928127 (4922872287A009)

for TRAIL BOSS 4X4 - W928127 from 1992

CENTER TIGHTENER ASSEMBLY P/N 1380023 250 4X4 / W928127 (4922872287B001)

CENTER TIGHTENER ASSEMBLY P/N 1380023 250 4X4 / W928127 (4922872287B001)

for TRAIL BOSS 4X4 - W928127 from 1992

FRONT TIGHTENER ASSEMBLY P/N 1380024 250 4X4 / W928127 (4922872287B002)

FRONT TIGHTENER ASSEMBLY P/N 1380024 250 4X4 / W928127 (4922872287B002)

for TRAIL BOSS 4X4 - W928127 from 1992

STEERING ASSEMBLY 250 4X4 / W928127 (4922872287B003)

STEERING ASSEMBLY 250 4X4 / W928127 (4922872287B003)

for TRAIL BOSS 4X4 - W928127 from 1992

CV JOINT 250 4X4 / W928127 (4922872287B005)

CV JOINT 250 4X4 / W928127 (4922872287B005)

for TRAIL BOSS 4X4 - W928127 from 1992

SWING ARM WLD. / REAR SHOCK ASSEMBLY 250 4X4 / W928127 (4922872287B013)

SWING ARM WLD. / REAR SHOCK ASSEMBLY 250 4X4 / W928127 (4922872287B013)

for TRAIL BOSS 4X4 - W928127 from 1992

CV JOINT 250 4X4 / W928127 (4922872287B05A)

CV JOINT 250 4X4 / W928127 (4922872287B05A)

for TRAIL BOSS 4X4 - W928127 from 1992

DRIVE CLUTCH ASSEMBLY 250 4X4 / W928127 (4922872287C001)

DRIVE CLUTCH ASSEMBLY 250 4X4 / W928127 (4922872287C001)

for TRAIL BOSS 4X4 - W928127 from 1992

DRIVEN CLUTCH ASSEMBLY 250 4X4 / W928127 (4922872287C002)

DRIVEN CLUTCH ASSEMBLY 250 4X4 / W928127 (4922872287C002)

for TRAIL BOSS 4X4 - W928127 from 1992

WIRING HARNESS 250 4X4 / W928127 (4922872287C007)

WIRING HARNESS 250 4X4 / W928127 (4922872287C007)

for TRAIL BOSS 4X4 - W928127 from 1992

GEARCASE ASSEMBLY 250 4X4 / W928127 (4922872287C009)

GEARCASE ASSEMBLY 250 4X4 / W928127 (4922872287C009)

for TRAIL BOSS 4X4 - W928127 from 1992

SHIFT LINKAGE ASSEMBLY 250 4X4 / W928127 (4922872287C011)

SHIFT LINKAGE ASSEMBLY 250 4X4 / W928127 (4922872287C011)

for TRAIL BOSS 4X4 - W928127 from 1992

CRANKCASE AND CYLINDER 250 4X4 / W928127 (4922872287C013)

CRANKCASE AND CYLINDER 250 4X4 / W928127 (4922872287C013)

for TRAIL BOSS 4X4 - W928127 from 1992

MAGNETO ASSEMBLY 250 4X4 / W928127 (4922872287D004)

MAGNETO ASSEMBLY 250 4X4 / W928127 (4922872287D004)

for TRAIL BOSS 4X4 - W928127 from 1992

RECOIL STARTER ASSEMBLY 250 4X4 / W928127 (4922872287D005)

RECOIL STARTER ASSEMBLY 250 4X4 / W928127 (4922872287D005)

for TRAIL BOSS 4X4 - W928127 from 1992

FAN MOTOR 250 4X4 / W928127 (4922872287D006)

FAN MOTOR 250 4X4 / W928127 (4922872287D006)

for TRAIL BOSS 4X4 - W928127 from 1992

HEADLIGHT ASSEMBLY 250 4X4 / W928127 (4922872287A011)

HEADLIGHT ASSEMBLY 250 4X4 / W928127 (4922872287A011)

for TRAIL BOSS 4X4 - W928127 from 1992

AIR BOX 250 4X4 / W928127 (4922872287A012)

AIR BOX 250 4X4 / W928127 (4922872287A012)

for TRAIL BOSS 4X4 - W928127 from 1992

FUEL TANK ASSEMBLY 250 4X4 / W928127 (4922872287A013)

FUEL TANK ASSEMBLY 250 4X4 / W928127 (4922872287A013)

for TRAIL BOSS 4X4 - W928127 from 1992

FRONT DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287A014)

FRONT DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287A014)

for TRAIL BOSS 4X4 - W928127 from 1992

CLUTCH COVER ASSEMBLY 250 4X4 / W928127 (4922872287B006)

CLUTCH COVER ASSEMBLY 250 4X4 / W928127 (4922872287B006)

for TRAIL BOSS 4X4 - W928127 from 1992

CONTROL ASSEMBLY 250 4x4 / W928127 (4922872287B007)

CONTROL ASSEMBLY 250 4x4 / W928127 (4922872287B007)

for TRAIL BOSS 4X4 - W928127 from 1992

STRUT ASSEMBLY 250 4X4 / W928127 (4922872287B009)

STRUT ASSEMBLY 250 4X4 / W928127 (4922872287B009)

for TRAIL BOSS 4X4 - W928127 from 1992

FRONT WHEEL ASSEMBLY 250 4X4 / W928127 (4922872287B010)

FRONT WHEEL ASSEMBLY 250 4X4 / W928127 (4922872287B010)

for TRAIL BOSS 4X4 - W928127 from 1992

REAR WHEEL DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287B011)

REAR WHEEL DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287B011)

for TRAIL BOSS 4X4 - W928127 from 1992

RIGHT CHAIN COVER ASSEMBLY 250 4X4 / W928127 (4922872287C003)

RIGHT CHAIN COVER ASSEMBLY 250 4X4 / W928127 (4922872287C003)

for TRAIL BOSS 4X4 - W928127 from 1992

RIGHT GEARCASE BRAKE MOUNTING 250 4X4 / W928127 (4922872287C004)

RIGHT GEARCASE BRAKE MOUNTING 250 4X4 / W928127 (4922872287C004)

for TRAIL BOSS 4X4 - W928127 from 1992

REAR BRAKE 250 4X4 / W928127 (4922872287C005)

REAR BRAKE 250 4X4 / W928127 (4922872287C005)

for TRAIL BOSS 4X4 - W928127 from 1992

FRONT BRAKE 250 4X4 / W928127 (4922872287C006)

FRONT BRAKE 250 4X4 / W928127 (4922872287C006)

for TRAIL BOSS 4X4 - W928127 from 1992

CRANKSHAFT AND PISTON 250 4X4 / W928127 (4922872287C014)

CRANKSHAFT AND PISTON 250 4X4 / W928127 (4922872287C014)

for TRAIL BOSS 4X4 - W928127 from 1992

OIL PUMP ASSEMBLY 250 4X4 / W928127 (4922872287D001)

OIL PUMP ASSEMBLY 250 4X4 / W928127 (4922872287D001)

for TRAIL BOSS 4X4 - W928127 from 1992

CARBURETOR 250 4X4 / W928127 (4922872287D002)

CARBURETOR 250 4X4 / W928127 (4922872287D002)

for TRAIL BOSS 4X4 - W928127 from 1992

STARTING MOTOR ASSEMBLY 250 4X4 / W928127 (4922872287D003)

STARTING MOTOR ASSEMBLY 250 4X4 / W928127 (4922872287D003)

for TRAIL BOSS 4X4 - W928127 from 1992

POLARIS TRAIL BOSS 4X4 - W928127 1992

TRAIL BOSS 4X4 - W928127

TRAIL BOSS 4X4 - W928127

Model : TRAIL BOSS 4X4

Engine capacity : autre

Year : 1992

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
