HEADLIGHT ASSEMBLY 250 4X4 / W928127 (4922872287A011)
5
Parts Diagram
Parts Catalog
FAN MOTOR 250 4X4 / W928127 (4922872287D006)
by
AIR BOX 250 4X4 / W928127 (4922872287A012)
HEADLIGHT ASSEMBLY 250 4X4 / W928127 (4922872287A011)
1
BULB; H/L
4030028
9999999
Not Available
2
HEADLIGHT ASM.
4032038
9999999
Not Available
3
SCREW
7512017
9999999
Not Available
4
COVER OIL-H/L(COOLBLUE)
5430973164
Not Available
5
SCREW; ADJ.(10)
4032003
9999999
Not Available
6
SCREW ADJUST (ATV)
4032042
9999999
Not Available
7
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
7
CABLE CHOKE
7080371
9999999
Not Available
8
SWITCH IGN.(MODIFIED)
4110086
9999999
Not Available
9
BRKT; IGN. PANEL
5220965067
Not Available
10
SOCKET STRIP
4032037
9999999
Not Available
11
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
12
PANEL IGNITION
5430995
9999999
Not Available
13
LENS ASMPILOT LIGHT
2652056
9999999
Not Available
14
SPRING-ADJ
4032002
9999999
Not Available
15
SPRING ADJ.
4032041
9999999
Not Available
16
SCREW
7511862
9999999
Not Available
17
DECAL WARN#DEM.4#SW. Substituted by 7074935
7072737
Not Available
18
RETAINER H/L BULB
4032063
9999999
Not Available
19
COVER SOCKET H/L.
4032066
9999999
Not Available

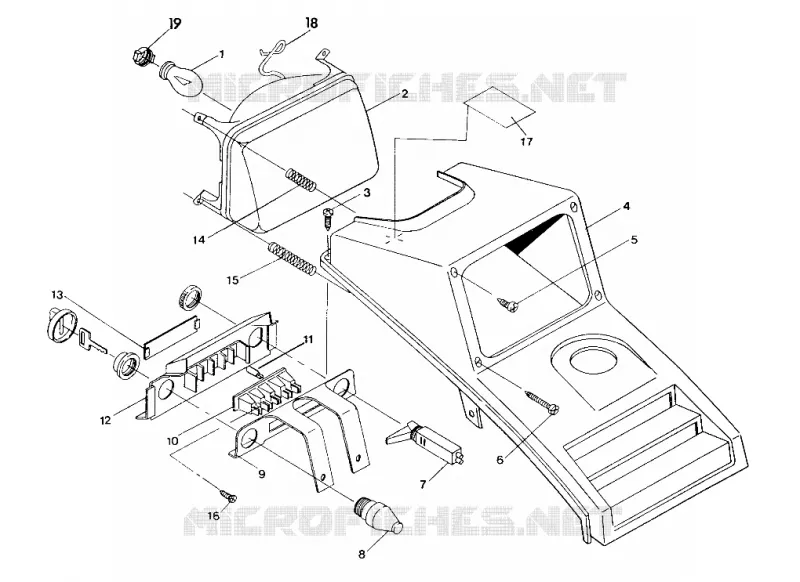

Find the detailed HEADLIGHT ASSEMBLY 250 4X4 / W928127 (4922872287A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
