REAR WHEEL DRIVE ASSEMBLY (4917741774021A)
5
Parts Diagram
Parts Catalog
MIDDLE WHEEL ASSEMBLY (4917741774020A)
by
DRIVE CLUTCH ASSEMBLY (4917741774028A)
REAR WHEEL DRIVE ASSEMBLY (4917741774021A)
1
1
2
3
4
5
6
6
7
7
7
7
7
9
10
11
12
13
14
15
16
16
17
18
18
19
19
20
21
22
22
23
24
25
26
27
27
27
27
28
28
29
30
30
1
2
3
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
15
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
26
1
WASHER
7555764
9999999
Not Available
1
MOUNT MOTOR
3110026
9999999
Not Available
2
MOTOR MOUNT INSULATOR
5430802
9999999
Not Available
2
JAM NUT
5020468
9999999
Not Available
3
HUB WHEEL
5130664
9999999
Not Available
3
BOLT
7515321
9999999
Not Available
4
TIRE REAR (4X6)
5410539
Not Available
4
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
5
NUT
7542714
9999999
Not Available
5
MOUNT ENG.TOP
5220471067
Not Available
6
WASHER
7555745
9999999
Not Available
6
WASHER
7555801
$7,34 Unit Price incl. VAT
7
NUT LOCK
7542403
9999999
Not Available
7
CASTLE NUT
7543005
9999999
Not Available
8
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
9
BOLT
7512566
9999999
Not Available
9
COVER DUST HUB
5410404
5413427
$52,49 Unit Price incl. VAT
10
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
10
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
11
WASHER
5210748
$7,34 Unit Price incl. VAT
11
CONNECTOR LINK
3225024
9999999
Not Available
12
CHAIN DRIVE 108P
3224045
9999999
Not Available
12
BUSHING
5430261
$13,64 Unit Price incl. VAT
13
BOLT
7515488
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
14
SPROCKET; 30 TOOTH
3222047
9999999
Not Available
15
HUB; SPROCKET
1380025
9999999
Not Available
15
HUB SPKT EXT.BLK. Substituted by 1380026
1380026067
Not Available
15
INSUL.CABLE SOL.
5410346
9999999
Not Available
16
O RING 1 5/16(10)
5410415
9999999
Not Available
16
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
17
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
17
AXLE SEAL; REAR
3610013
9999999
Not Available
18
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
18
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
19
SCREW
7512490
$7,34 Unit Price incl. VAT
19
TUBE BEARING SPACER
5010204
9999999
Not Available
20
PLATE FR.MTR.MT.
5220881067
Not Available
20
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
21
ENG.EC25PF-08 Substituted by 3084717
1211534
Not Available
21
HOUSING AXLE
5130663
9999999
Not Available
22
SPACER BEARING
5010206
9999999
Not Available
22
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
23
SNAP RING
7710405
9999999
Not Available
23
CHECKVALVE VENT
7052047
9999999
Not Available
24
AXLE; REAR
5020504
9999999
Not Available
24
FITTING; TEE
7052005
9999999
Not Available
25
RIM;REAR;PRIMED
1520128
1520114
Not Available
25
MOUNT REAR
5220757067
Not Available
26
MOUNT ENGINE
3110028
9999999
Not Available
26
BOLT
7512673
$5,76 Unit Price incl. VAT
27
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
28
FUEL LINE3/16 ID(600 CM.)
8450042600
Not Available
29
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
30
CABLE GROUND/ENG.
4010067
9999999
Not Available

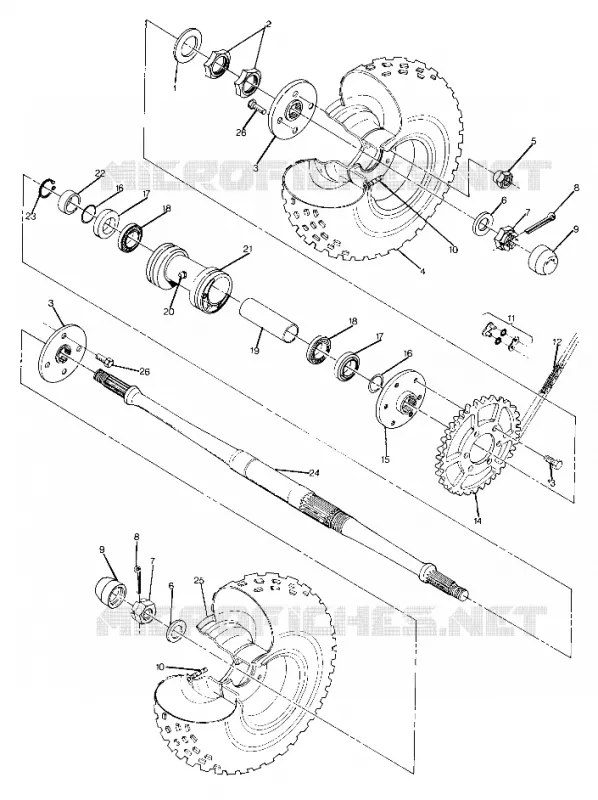

Find the detailed REAR WHEEL DRIVE ASSEMBLY (4917741774021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
