1
Engine displacement
autre
2
Year
1990
3
Trim
BIG BOSS 4X6 - W908627
4
Parts Catalog
REAR SWING ARM SHOCK UPDATED 5/90 (4917741774027A)
5
Parts Diagram
Parts Catalog
SWING ARM WELDMENT (MIDDLE) (4917741774026A)
by
BATTERY BOX ASSEMBLY (4917741774033A)
REAR SWING ARM SHOCK UPDATED 5/90 (4917741774027A)
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
GUARD CHAIN WELD. Substituted by 1040184-067
1040184
Not Available
2
GUARD TOP CHAIN
5431101
9999999
Not Available
3
GUIDE R.CHAIN
5521207
Not Available
4
SCREW(10)
7511987
9999999
Not Available
5
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
BOLT
7512325
$4,19 Unit Price incl. VAT
7
NUT NYLOK
7542327
9999999
Not Available
8
SCREW
7512252
9999999
Not Available
9
S.ARM EXT. WELD. Substituted by 1580036-067
1580036
Not Available
10
HITCH WELD.
1040162067
Not Available
11
BOLT
7512569
9999999
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
HOUSING AXLE
5130663
9999999
Not Available
14
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
15
STRUT&SHOCK ASMREAR
1580038
9999999
Not Available
16
WASHER
7555749
$2,09 Unit Price incl. VAT
17
SPACER THREADED
5130631
9999999
Not Available
18
SPACER
5332971
Not Available
19
BUMPER
5410535
9999999
Not Available
20
PIVOT BALL; TOP
5430806
5432872
$19,94 Unit Price incl. VAT
21
PIVOT BALL;BOTTOM
5430807
5432871
$19,94 Unit Price incl. VAT
22
ADAPTER SPRING SEAT
5630351
9999999
Not Available
23
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
24
COMPRESSION SPRING; REAR; GS BLK
7041204067
Not Available
25
FITTING-LUBE.
7080220
9999999
Not Available
26
BOLT
7512531
9999999
Not Available
27
NUT FLEXLOCK
7542503
9999999
Not Available
28
FLEX LOC NUT
7542507
9999999
Not Available
29
WASHER
7555740
$3,14 Unit Price incl. VAT
30
SHOCK FR.STRUT
7041211
9999999
Not Available
31
DECAL HITCH Substituted by 7078261
7072533
Not Available

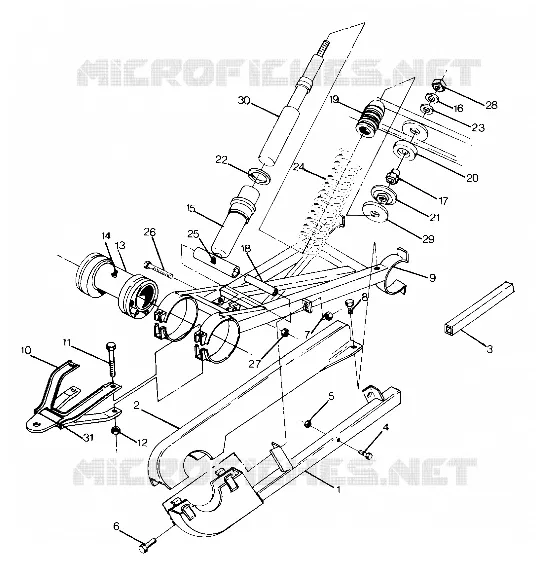

Find the detailed REAR SWING ARM SHOCK UPDATED 5/90 (4917741774027A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
