FRONT STRUT for POLARIS XPLORER 400 - A01CG38CA from 2001

FRONT STRUT

1

BUMPER-MCU 17.80MM ID

5411608

5412665

$12,59 Unit Price incl. VAT

2

FRONT STRUT

7041761

$283,49 Unit Price incl. VAT

3

WASHER

5211115

$7,34 Unit Price incl. VAT

4

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

5

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

6

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

7

CAP SCREW

7512365

$2,09 Unit Price incl. VAT

8

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

9

RETAINER WIRE STRUT CAST

5810439

9999999

Not Available

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

TAPERED ROLLER BEARING

3554509

$40,94 Unit Price incl. VAT

12

TAPER ROLL CUP BEARING

3554507

$54,59 Unit Price incl. VAT

13

HUBSTRUT SEAL SLEEVE

5222193

$120,74 Unit Price incl. VAT

14

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

15

COIL-MAG GRY BRN/WHT 42 W/CON

2410133

2201313

$241,49 Unit Price incl. VAT

16

HUBSTRUT LH ASM.

1820950

9999999

Not Available

16

HUBSTRUT RH ASM.

1820951

9999999

Not Available

17

SPRING COIL FR SHOCK BLK.

7041375067

Not Available

18

RETAINER SPRING

5243364

$36,74 Unit Price incl. VAT

19

BALL BOTTOM PIVOT

5432871

$19,94 Unit Price incl. VAT

20

BOLT

7515339

$9,44 Unit Price incl. VAT

21

SPACER 1 2 20

5132062

$36,74 Unit Price incl. VAT

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

23

HUB STRUT SEAL

3610028

$57,74 Unit Price incl. VAT

24

PIVOT BALL; TOP

5432872

$19,94 Unit Price incl. VAT

25

SPACER RUBBER

5810291

$7,34 Unit Price incl. VAT

26

WASHER

7555749

$2,09 Unit Price incl. VAT

27

NUT

7547104

$2,09 Unit Price incl. VAT

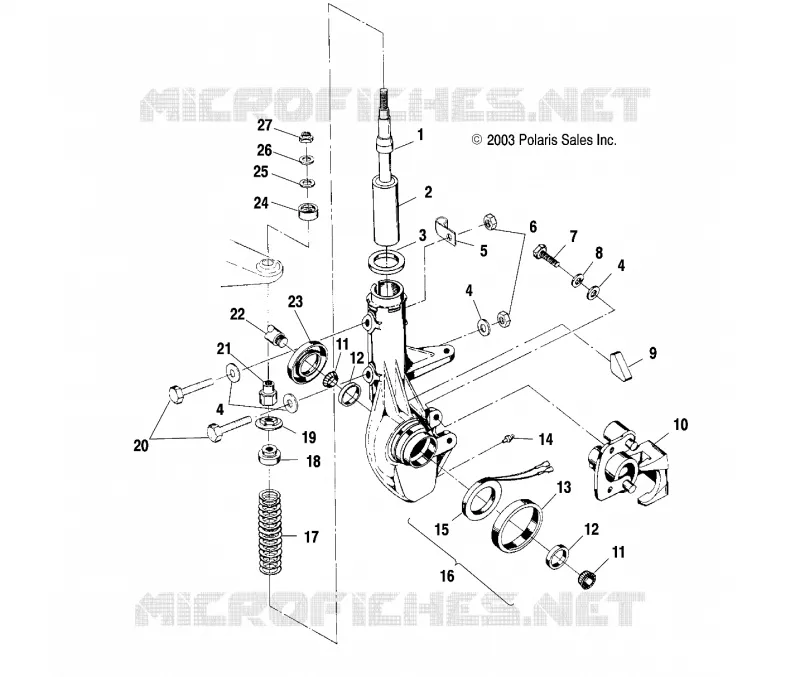

Find the detailed FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
