Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
by
OIL PUMP
CYLINDER
1
2
3
1
2
3
1
CYLINDER-ASM 99MM
3022295
3024041
$202,64 Unit Price incl. VAT
2
PIN-DOWEL M6X10
5137611
5132835
$4,19 Unit Price incl. VAT
3
GASKET-BASE
5254903
5260934
$41,99 Unit Price incl. VAT

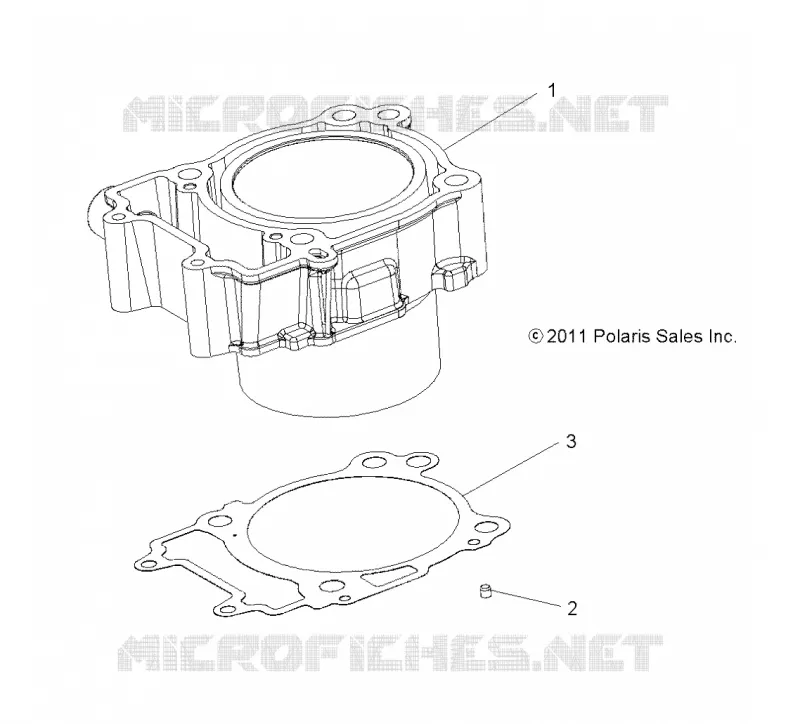

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
