Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
STORAGE REAR BOX
5
Parts Diagram
Parts Catalog
SEAT
by
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
STORAGE REAR BOX
1
2
3
4
5
6
1
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
2
COMPARTMENT PLUG
5412981
5418084
$6,29 Unit Price incl. VAT
3
REAR SUB ASSEMBLY
1203104
$152,24 Unit Price incl. VAT
4
BOX SEAL; REAR
5812911
5815299
$52,49 Unit Price incl. VAT
5
TOOL BOX COVER
5436349
$73,49 Unit Price incl. VAT
6
TURN LATCH CAM; 1/4
7081425
$11,54 Unit Price incl. VAT

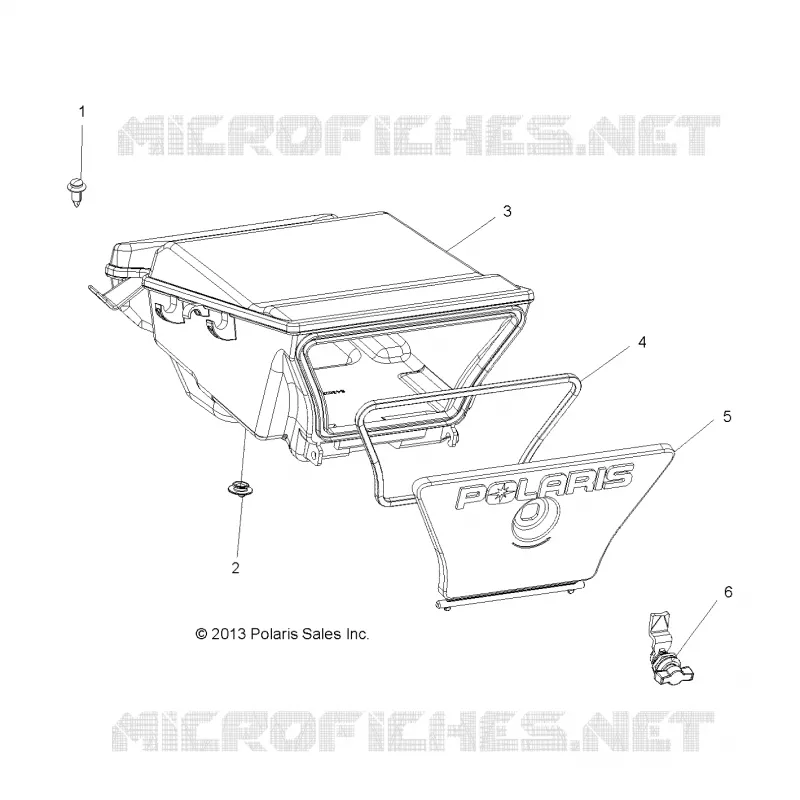

Find the detailed STORAGE REAR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
