Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT DRIVE SHAFT
by
DRIVE TRAIN, MAIN GEARCASE
DRIVE TRAIN, FRONT GEARCASE
1
2
3
3
4
5
5
5
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
1
GEARCASE ASSEMBLY; FRONT; 12 POCKET
1333371
1337621
Not Available
2
OUTPUT COVER ASSEMBLY
3235553
3236664
$965,99 Unit Price incl. VAT
3
OUTPUT HUB ASSEMBLY
3235554
3236673
$876,74 Unit Price incl. VAT
4
KIT-FASTENER
3235469
$25,19 Unit Price incl. VAT
5
SEAL REPAIR KIT
3235470
3236669
$136,49 Unit Price incl. VAT
6
PLATE-4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
ARMATURE PLATE; BD
3235626
$188,99 Unit Price incl. VAT
8
BEARING
3234390
$60,89 Unit Price incl. VAT
9
CAGE ROLLER
3235624
$12,59 Unit Price incl. VAT
10
ROLL CAGE ASSEMBLY
3235625
$325,49 Unit Price incl. VAT
11
GEARCASE ASSEMBLY
3235555
3236678
$797,99 Unit Price incl. VAT
12
MAGNETIC DRAIN PLUG ASSEMBLY
3234412
$83,99 Unit Price incl. VAT
13
PLUG-OIL FILL3/4-16 HOLLOW HD
3234414
3233942
$62,99 Unit Price incl. VAT
14
RING-RETAINING INTRNL 5000-218
3234416
$19,94 Unit Price incl. VAT
15
TORISON SPRING AND RETAINER KIT
3235712
$68,24 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
HOUSING AND PINION GEAR KIT
3235627
3239540
$1 622,24 Unit Price incl. VAT

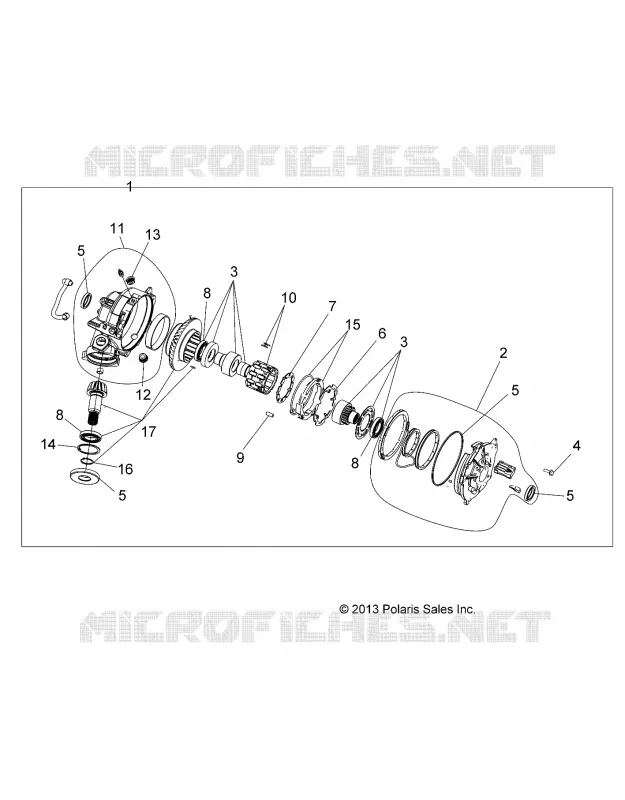

Find the detailed DRIVE TRAIN, FRONT GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
