Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
ENGINE MOUNTING
COOLING SYSTEM
1
2
3
4
5
6
7
7
7
7
7
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
HEX HEAD BOLT; 6 MM
7517975
9999999
Not Available
2
CLIP- U M6.0X1.0
7547197
9999999
Not Available
3
FAN ASSEMBLY; 11 IN
2410366
9999999
Not Available
4
SCR-M6-1.00X20 W/WASHER(10)
7547220
9999999
Not Available
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
7
CLAMP-ROT SPRING 31.5 MM
7081047
9999999
Not Available
8
NECK FILLER REMOTE COOLANT FITTING
5435196
9999999
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
11
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
12
GUARD-HOSE 9
5521597
9999999
Not Available
13
HOSE-UPPER ENGINE1"
5412391
9999999
Not Available
14
EDGE-TRIM BLACK 17 CM
836001217
Not Available
15
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
16
GASKET
5810279
$4,19 Unit Price incl. VAT
17
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
18
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
19
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
20
FUEL LINE; 1/4 ID
84500031525
Not Available
21
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
22
RADIATOR MOUNT BRACKET; UPPER
5246656
9999999
Not Available
23
HOSE-FILLER NECK
5412311
9999999
Not Available
24
GUARD-HOSE 6.75
5521644
9999999
Not Available
25
CONNECTOR-TEE 1INCH BARBED
7052342
7052373
$19,94 Unit Price incl. VAT
26
HOSE-LOWER RADIATOR1"
5412392
9999999
Not Available
27
GROMMET AND INSERT ASSEMBLY
5411975
9999999
Not Available
28
SCREW
7515179
$4,19 Unit Price incl. VAT
29
RADIATOR-15 FPI;1" FITTINGS
1240190
1240521
$850,49 Unit Price incl. VAT
30
SCREW
7517386
$2,09 Unit Price incl. VAT
31
RADIATOR BRACKET; LOWER; GS BLK
5245773067
Not Available
32
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
33
VALVE-PLASTIC DRAIN
7052296
9999999
Not Available
34
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
35
HOSE-LOWER ENGINESHORTER
5412585
9999999
Not Available
36
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
37
RETAINER-HOSE WIRE FORM
7042089
9999999
Not Available
38
SHROUD-FAN
5434853
9999999
Not Available

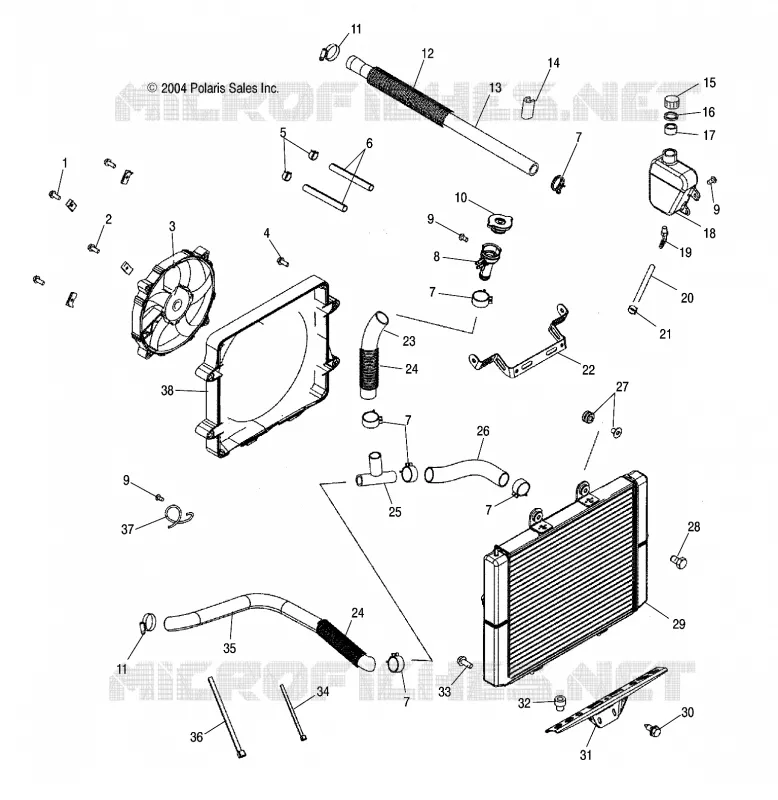

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
