1
FUEL PUMP
2520227
$146,99 Unit Price incl. VAT
2
SCREW M5X0.8X10 PHPN ZY L/W SE
7517867
$3,14 Unit Price incl. VAT
3
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
4
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
5
WELL NUT
7541923
$10,49 Unit Price incl. VAT
6
STRAP-FUEL PUMPMTGCONSOL PLT
5243829
9999999
Not Available
7
BOLT
7512329
$7,34 Unit Price incl. VAT
8
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
9
Line Fuel
8450103600
Not Available
10
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
11
Sheath Foil
845008050
Not Available
12
KIT-SHORT BLOCK ATV 600
2202361
9990000
Not Available
13
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
14
CABLE GND-ENGINE
4010132
9999999
Not Available
15
SCREW
7517386
$2,09 Unit Price incl. VAT
16
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
17
HOSE-FORMED VENT
5412287
9999999
Not Available
18
VALVE CHECK
7051011
9999999
Not Available
19
SCREW H.H.CAP
7516714
$7,34 Unit Price incl. VAT
20
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
21
NUT
7547108
$9,44 Unit Price incl. VAT
22
BRKT MNT ENGINE TOP BLK
5244622067
Not Available
23
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
24
BOLT-M6X1.0X30 HXHD SEMS L/WZY
7517868
9999999
Not Available
25
CABLE-BLACK 25
4010470
9999999
Not Available
26
BOOT CLTCH INTAKE 2.25I.D.
5411944
9999999
Not Available
27
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
28
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
29
BOLT 7/16X20X8
7518197
7519287
$52,49 Unit Price incl. VAT
30
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
31
WASHER
5210748
$7,34 Unit Price incl. VAT
32
BUSHING
5430261
$13,64 Unit Price incl. VAT
33
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
34
SCREW
7512492
$2,09 Unit Price incl. VAT
35
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
36
ENGINE MOUNT; LOWER; FRONT; GS BLK
5244771067
Not Available
37
WASHER
7555823
$7,34 Unit Price incl. VAT
38
BRKT-TORQUE STOP;BLK
5245043067
Not Available

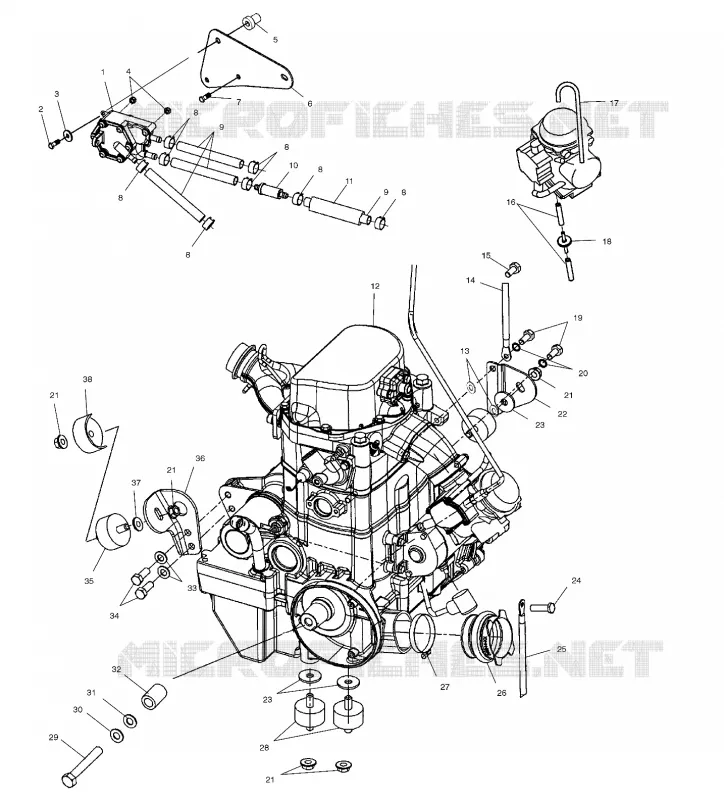

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
