Engine displacement
600
2
Year
2003
3
Trim
SPORTSMAN 600 - A03CH59AA
4
Parts Catalog
REAR WHEEL DRIVE
5
Parts Diagram
Parts Catalog
REAR GEARCASE
by
REAR CAB, SEAT MAIN FRAME
REAR WHEEL DRIVE
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
COVER DUST HUB
5411164
5413427
$52,49 Unit Price incl. VAT
2
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
3
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
4
WELD-RIM REAR 12X8.0 BLK
1520564067
Not Available
4
WELD-RIM RR 12X8 11GA CHROME
1520588
9999999
Not Available
4
WELD-RIM REAR 12X8.0 CLOUD SLV
1520564385
Not Available
5
HUB-WHEEL REAR MACH
5133361
9999999
Not Available
6
REAR BRAKE DISC
5244635
9999999
Not Available
7
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
8
BEARING
3585502
3514635
$73,49 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
BOLT
7512325
$4,19 Unit Price incl. VAT
11
RAWHIDE GRIP AT25-11-12
5411949
9999999
Not Available
12
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
13
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
14
FLANGE NUT
7547237
$4,19 Unit Price incl. VAT
15
CASTLE NUT
7543005
9999999
Not Available

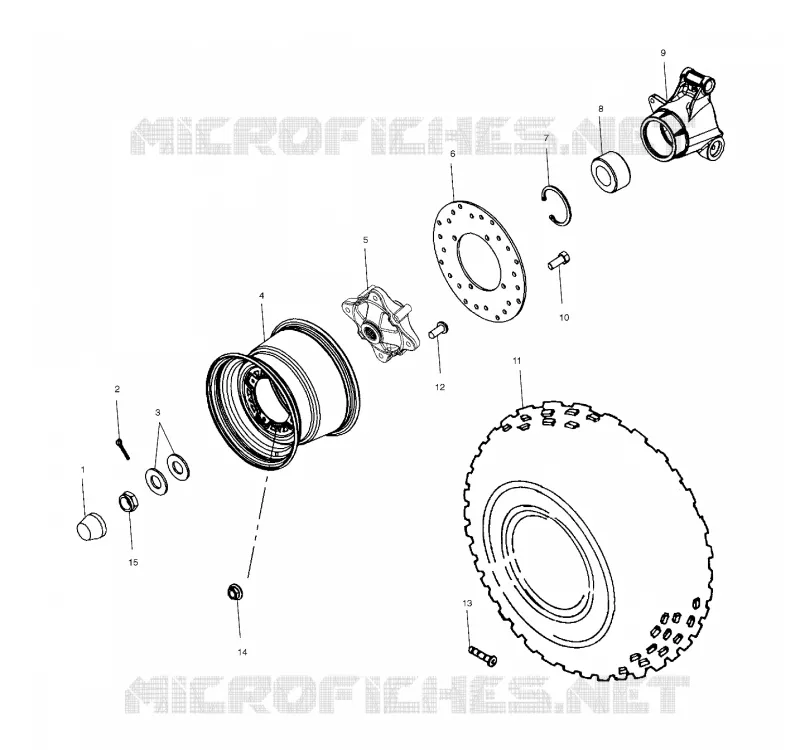

Find the detailed REAR WHEEL DRIVE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
