Engine displacement
600
2
Year
2003
3
Trim
SPORTSMAN 600 - A03CH59AA
4
Parts Catalog
CYLINDER AND CYLINDER HEAD
5
Parts Diagram
Parts Catalog
TRANSMISSION MOUNTING
by
STARTING MOTOR
CYLINDER AND CYLINDER HEAD
1
2
3
21
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
21
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
21
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
21
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
21
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
SCREW
7517277
$5,76 Unit Price incl. VAT
2
COVER BREATHER
5432533
5438320
$16,79 Unit Price incl. VAT
3
REED W/ GASKET ASSEMBLY
3021352
$62,99 Unit Price incl. VAT
4
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
5
ROCKER COVER-ASM
1201973
2203004
$157,49 Unit Price incl. VAT
6
HOLLOW O-RING SEAL; .125
5411862
$89,24 Unit Price incl. VAT
7
SCR-M12X1.75X180HX/FL-CYL HEAD
7517883
9999999
Not Available
8
EXHAUST GASKET; 27.25 MM
5811511
$89,24 Unit Price incl. VAT
9
Manifold Exhaust
1261077067
Not Available
10
SCREW AND WASHER ASSEMBLY
7516730
9999999
Not Available
11
GUIDE VALVE 6 MM
5131429
9999999
Not Available
11
ASM-CYLINDER HEAD ATV 76.5
1202171
9999999
Not Available
12
GASKET-CYLINDER HEAD 76.5 BORE
5812212
9999999
Not Available
13
KIT-CYLINDER 76.5 TWIN ATV
2202368
9999999
Not Available
14
CYLINDER BASE GASKET
5811455
9999999
Not Available
15
EXPANSION PLUG; 1 1/8 IN
7051534
9999999
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
CLAMP HOSE SS
7080681
$17,84 Unit Price incl. VAT
18
SCREW
7516734
$5,76 Unit Price incl. VAT
19
CARBURETOR ADAPTOR
1253415
9999999
Not Available
20
SPARKPLUG CHAMP;RC7YC(4)
3070195
3021671
$7,34 Unit Price incl. VAT
21
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
22
COVER-THERMOSTAT W/O BYPASS
5631196
9999999
Not Available
23
THERMOSTAT W/O BYPASS; 82 C
7052308
9999999
Not Available
24
O-RING LIP SEAL
5411521
9999999
Not Available
25
TEMPERATURE SWITCH; 110 CELSIUS
4010356
9999999
Not Available
26
FITTING
7052135
9999999
Not Available

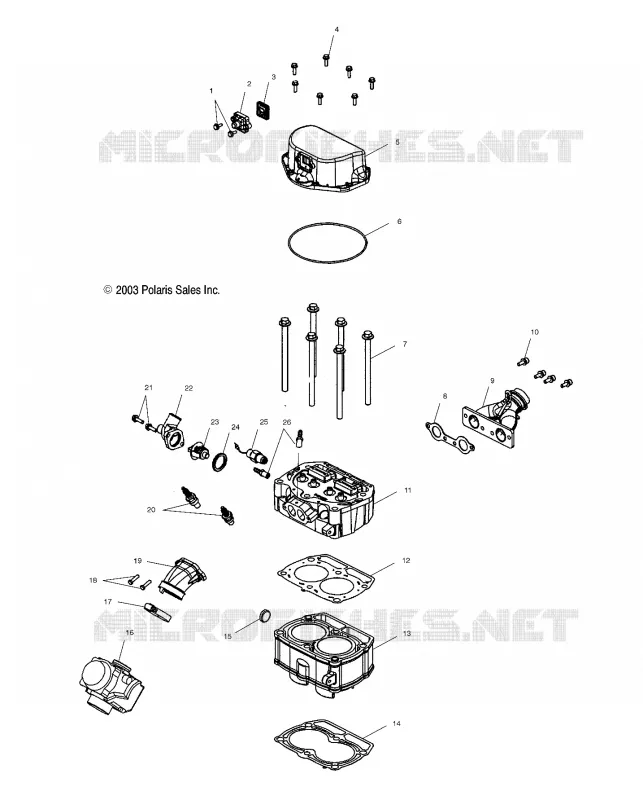

Find the detailed CYLINDER AND CYLINDER HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
