SPORTSMAN 600 - A03CH59AA
4
Parts Catalog
CONTROLS-MASTER CYLINDER/BRAKE LINE
5
Parts Diagram
Parts Catalog
OIL PUMP
by
REAR MASTER CYLINDER FOOT PEDAL
CONTROLS-MASTER CYLINDER/BRAKE LINE
-
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
1
2
3
3
4
5
6
7
8
8
9
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
-
MASTER CYL;3/4";BAN;WW;LH;ASM.
2010196
2010238
$456,74 Unit Price incl. VAT
1
BOOT BRAKELINE RUBBER
5411297
9999999
Not Available
2
SEAL (10)
5410988
9999999
Not Available
3
STOPLIGHT SWITCH
4110164
2890637
$325,49 Unit Price incl. VAT
4
CAP MASTER CYLINDER KIT
2201834
2202725
$99,74 Unit Price incl. VAT
5
SCREW 8-32X5/8 TORX FLHD MS-M(
7517899
9999999
Not Available
6
MASTER CYLINDER PARK BRAKE LEVER KIT
2201836
$83,99 Unit Price incl. VAT
7
MASTER CYLINDER CLAMP KIT
2201833
$89,24 Unit Price incl. VAT
8
MASTER CYLINDER LEVER KIT
2201835
$115,49 Unit Price incl. VAT
9
LINE-BRAKE REAR HAND
1910430
2202644
$188,99 Unit Price incl. VAT
10
RIVET
7621462
$2,09 Unit Price incl. VAT
11
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT
12
CONDUIT; 34 CM.
836003134
Not Available
13
BRAKE LINE; FRONT; LEFT; STAINLESS
1910474
$167,99 Unit Price incl. VAT
14
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
15
SCREW
7512024
$9,44 Unit Price incl. VAT
16
BRAKE LINE; FRONT; RIGHT
1910475
$167,99 Unit Price incl. VAT
17
CROSS FITTING
7052292
$73,49 Unit Price incl. VAT
18
BRAKE LINE POD; STAINLESS; 22.56
1910470
$167,99 Unit Price incl. VAT
19
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT

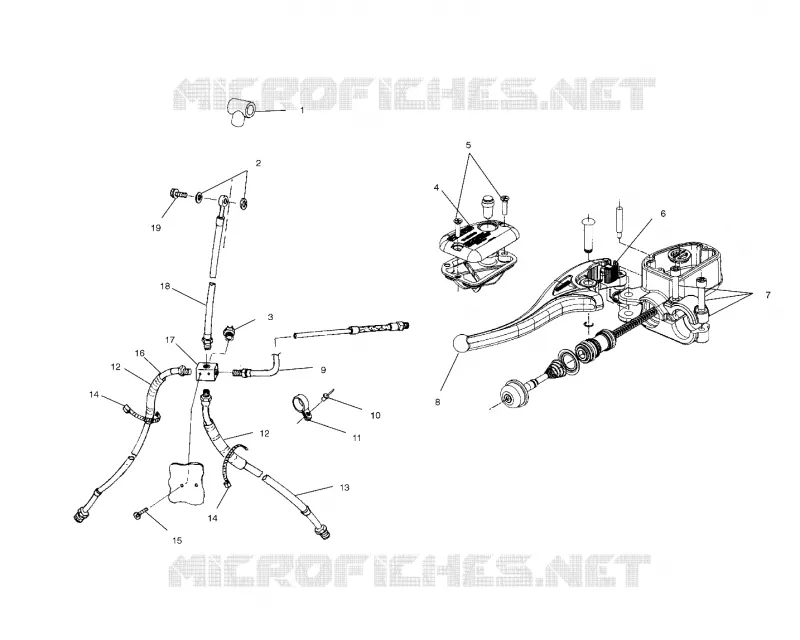

Find the detailed CONTROLS-MASTER CYLINDER/BRAKE LINE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
