1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog

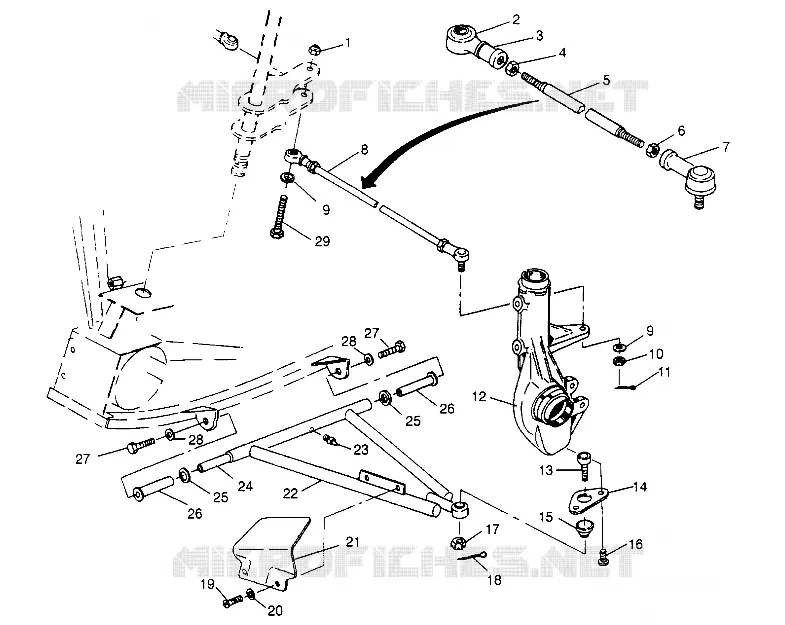

WISHBONES 4x4 300 W948130 (4926762676B009)
5
Parts Diagram
Parts Catalog
STEERING POST ASSEMBLY 4X4 300 W948130 (4926762676B008)
by
CONTROLS
WISHBONES 4x4 300 W948130 (4926762676B009)
1
2
3
4
5
6
7
8
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
21
21
21
22
22
22
22
23
24
25
25
26
26
27
27
28
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
1
NUT LOCK
7542403
9999999
Not Available
2
ROD END SEAL BOOT
5410540
9999999
Not Available
3
ROD END; RH
7060149
9999999
Not Available
4
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
5
TIE ROD
5020528
9999999
Not Available
6
NUT LH 10 MM.
7546902
9999999
Not Available
7
ROD END
7060147
9999999
Not Available
8
TIE ROD ASM. Substituted by 1822310
1822081
Not Available
9
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
10
NUT CASTLE(10)
7546904
9999999
Not Available
11
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
14
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
15
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
16
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
18
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
19
SCREW
7512017
9999999
Not Available
20
WASHER
7555792
$9,44 Unit Price incl. VAT
21
SHIELD RH CV JOINT
5431149
9999999
Not Available
21
SHIELD LH CV JOINT
5431150
9999999
Not Available
22
KITA-FRAMELH
2200481
9999999
Not Available
22
KIT A-FRAME RH
2200482
9999999
Not Available
23
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
24
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
25
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
26
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
27
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
28
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
29
BOLT
7515507
9999999
Not Available

Find the detailed WISHBONES 4x4 300 W948130 (4926762676B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
