1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
SWING ARM SHOCK 4X4 300 W948130 (4926762676B013)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER ASSEMBLY 4X4 300 W948130 (4926762676B012)
by
CLUTCH COVER ASSEMBLY 4X4 300 W948130 (4926762676B014)
SWING ARM SHOCK 4X4 300 W948130 (4926762676B013)
1
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
4
5
6
6
7
7
8
9
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
SCREW
7515415
9999999
Not Available
3
RETAINER; SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
4
COMPRESSION SPRING; REAR; GS BLK
7041204067
Not Available
5
SHOCK REAR
7041218
7041448
$283,49 Unit Price incl. VAT
6
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
7
ADAPTER SPRING SEAT
5630351
9999999
Not Available
8
CAM ADJUSTING SPRING
5630334
9999999
Not Available
9
OIL SEAL
3610016
9999999
Not Available
10
WASHER
7555779
9999999
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
NUT CROWN LOCK
7542601
9999999
Not Available
13
BOLT SHOULDER
7512702
9999999
Not Available
14
BOLT LOCK PLATE
5220958
9999999
Not Available
15
BUSHING MACH.(10)
7555752
9999999
Not Available
16
BEARING
3576507
9999999
Not Available
17
BUSHING SWING ARM(10)
5010255
9999999
Not Available
18
CHAIN GUARD
5430776
9999999
Not Available
19
BUSHING
5332828
9999999
Not Available
20
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
21
FLANGED SCREW
7515304
9999999
Not Available
22
RIVET
7621433
$2,09 Unit Price incl. VAT
23
GUIDE CHAIN
5431310
9999999
Not Available
24
WASHER
7552604
$3,14 Unit Price incl. VAT
25
SCREW
7512252
9999999
Not Available
26
GUARD SWING ARM
1040166067
Not Available
27
NUT FLEXLOCK
7542503
9999999
Not Available
28
WASHER
7555883
$7,34 Unit Price incl. VAT
29
DECAL CHAIN TENSION Substituted by 7074752
7074177
Not Available
30
DECAL HITCH Substituted by 7078261
7072533
Not Available
31
KIT HITCH
2200472
9999999
Not Available
32
BOLT
7512576
9999999
Not Available
33
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
34
ARM; SWING
1580048067
Not Available
35
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
36
HOUSING AXLE
5130663
9999999
Not Available
37
BOLT
7515438
$9,44 Unit Price incl. VAT
38
FITTING LUBE
7080438
$19,94 Unit Price incl. VAT
39
SHOULDER BOLT
7512701
9999999
Not Available

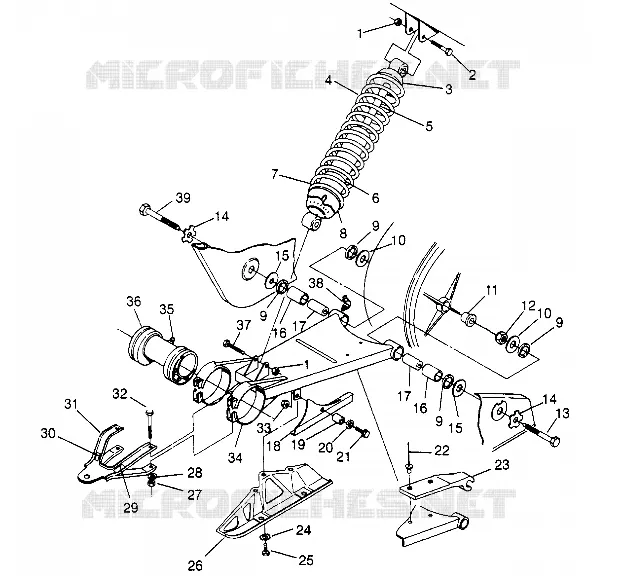

Find the detailed SWING ARM SHOCK 4X4 300 W948130 (4926762676B013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
