1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
CARBURETOR 4X4 300 W948130 (4926762676D004)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY 4X4 300 W948130 (4926762676D003)
by
CARBURETOR 4X4 300 W948130 (4926762676D004)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
THROTTLE SPRING
3130354
9999999
Not Available
3
THROTTLE PLATE
3130002
9999999
Not Available
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE-JET (5DP7-2)
3130356
3130155
$52,49 Unit Price incl. VAT
6
WASHER
3130355
9999999
Not Available
7
THROTTLE VALVE
3130420
9999999
Not Available
8
NEEDLE JET
3130409
9999999
Not Available
9
CARBURETOR
3130498
9999999
Not Available
10
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
11
NEEDLE VALVE
3130360
$89,24 Unit Price incl. VAT
12
PIN; FLOAT
3130235
3130361
$18,89 Unit Price incl. VAT
13
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
14
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
15
CAP
3130237
$8,39 Unit Price incl. VAT
16
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
17
FLOAT CHAMBER ASSEMBLY
3130441
9999999
Not Available
18
HEX HEAD MAIN JET #155
3130114
9999999
Not Available
19
O-RING
3130239
9999999
Not Available
20
DRAIN PLUG
3130321
$41,99 Unit Price incl. VAT
21
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
22
WASHER
3130014
$3,14 Unit Price incl. VAT
23
JET PILOT #40(10)
3130067
9999999
Not Available
24
SPRING AIR ADJUST
3130012
9999999
Not Available
25
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
26
SCREW THROTTLE STOP
3130324
9999999
Not Available
27
SPRING
3130010
$18,89 Unit Price incl. VAT
28
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
29
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
30
CAP; PLUNGER
3130359
9999999
Not Available

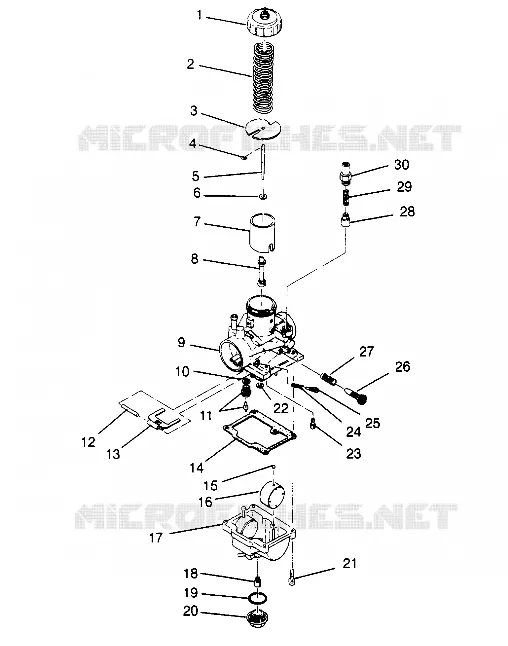

Find the detailed CARBURETOR 4X4 300 W948130 (4926762676D004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
