1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
GEARCASE ASSEMBLY 4X4 300 W948130 (4926762676C007)
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE ASSEMBLY 4X4 300 W948130 (4926762676C006)
by
ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 300 W948130 (4926762676C009)
GEARCASE ASSEMBLY 4X4 300 W948130 (4926762676C007)
-
1
2
3
3
4
4
5
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
18
19
20
21
21
22
22
22
23
24
25
25
26
27
28
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
1
2
3
4
5
6
7
8
9
10
11
-
GEARCASE ASM.13/11
1341136
9999999
Not Available
1
CASE LH
3233002
9999999
Not Available
2
SCREW
3233026
9999999
Not Available
3
SEAL
3233096
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
9999999
Not Available
5
STUD
3233025
9999999
Not Available
6
SEAL
3233097
3233788
$57,74 Unit Price incl. VAT
7
PIPE KNOCK
3233021
9999999
Not Available
8
SHIFTRAIL; LOW
3233022
9999999
Not Available
9
SHIFTRAIL HIGH/REV.
3233023
9999999
Not Available
10
SHAFTLOW SHIFT
3233038
9999999
Not Available
11
O-RING
3233044
9999999
Not Available
12
WASHER
3233040
9999999
Not Available
13
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
14
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
15
WASHER
3233054
9999999
Not Available
16
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
17
SHAFT HI/REV SHIFT
3233039
9999999
Not Available
18
PIN
3233031
9999999
Not Available
19
BRACKET
3233030
9999999
Not Available
20
SPRING
3233032
9999999
Not Available
21
SCREW
3233033
9999999
Not Available
22
BEARING
3233018
$47,24 Unit Price incl. VAT
23
SHAFT INPUT
3233122
Not Available
24
BEARING
3233019
$54,59 Unit Price incl. VAT
25
WASHER
3233007
9999999
Not Available
26
GEAR 33T
3233125
9999999
Not Available
27
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
28
WASHER
3233010
9999999
Not Available
29
DOG ENGAGEMENT LOW
3233126
9999999
Not Available
30
SHAFT REVERSE
3233124
Not Available
31
WASHER
3233012
9999999
Not Available
32
SILENT CHAIN
3233036
9999999
Not Available
33
RING RETAINING
3233029
9999999
Not Available
34
GEAR 25T
3233129
9999999
Not Available
35
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
36
VENT
3233037
9999999
Not Available
37
DIPSTICK
3233034
9999999
Not Available
38
O-RING
3233053
9999999
Not Available
39
DISC BRAKE
1910148
9999999
Not Available
40
RING RETAINING
7710433
9999999
Not Available
41
SPROCKET; 11 TOOTH
3221058
9999999
Not Available
42
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
43
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
44
BOLT
7515321
9999999
Not Available
45
RING RETAINING
3233047
7710434
$7,34 Unit Price incl. VAT
46
SPROCKET; 13 TOOTH
3221041
$83,99 Unit Price incl. VAT
47
PLUG OIL DRAIN
3233028
9999999
Not Available
48
WASHER
3233035
9999999
Not Available
49
CASE RH
3233003
9999999
Not Available
50
OIL DEFLECTOR
3233043
9999999
Not Available
51
DOG ENGAGEMENT HI/REV.
3233128
9999999
Not Available
52
BEARING
3233020
$80,84 Unit Price incl. VAT
53
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
54
SPROCKET 24T
3233127
9999999
Not Available
55
SHAFT OUTPUT
3233123
9999999
Not Available
56
GEAR 65T
3233130
9999999
Not Available

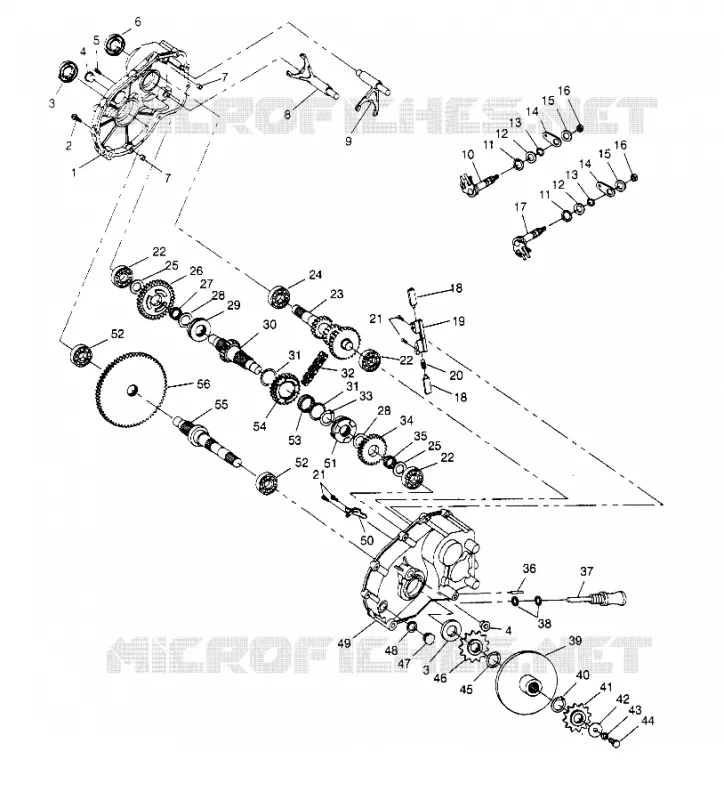

Find the detailed GEARCASE ASSEMBLY 4X4 300 W948130 (4926762676C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
