1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 STD - B954358
4
Parts Catalog

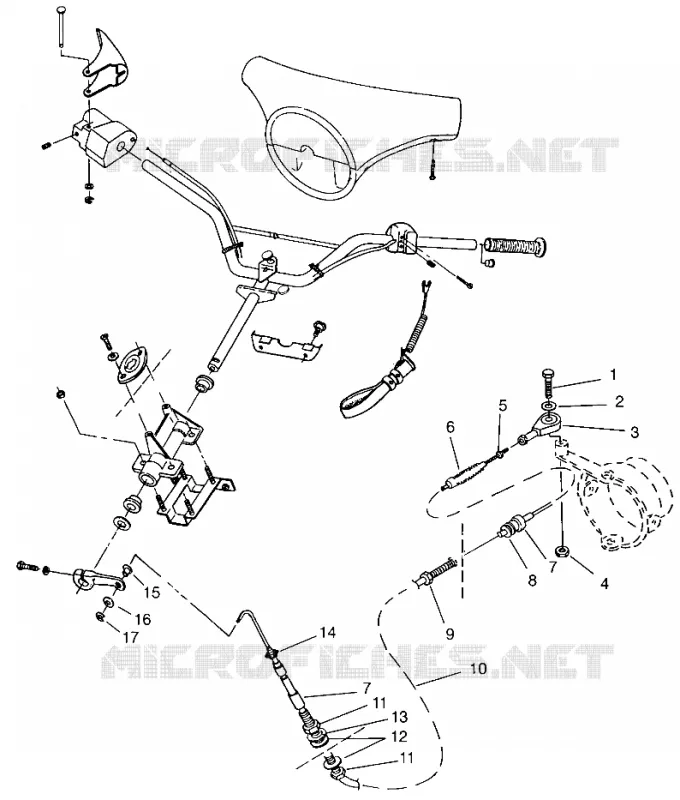

STEERING SL 650 STD B954358 (4932923292A014)
5
Parts Diagram
Parts Catalog
STEERING SL 650 STD B954358 (4932923292A013)
by
ENGINE MOUNTING SL 650 B954058 (4932923292B001)
STEERING SL 650 STD B954358 (4932923292A014)
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
16
17
1
BOLT
7515120
9999999
Not Available
2
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
3
ROD END
7060170
9999999
Not Available
4
NUT NYLOK S.S.
7542133
9999999
Not Available
5
NUT S.S.(10)
7542150
9999999
Not Available
6
BOOT;(STRG.)
1860116
9999999
Not Available
7
SEAL ROD STRG.
1860108
9999999
Not Available
8
SEAL WASHER STRG.
1860115
9999999
Not Available
9
NUT
1860114
9999999
Not Available
10
CABLE STEERING Substituted by 2200892
7080575
Not Available
11
NUT
7542528
9999999
Not Available
12
WASHER
1860103
9999999
Not Available
13
WASHER; LOCK;S.S.
7571625
9999999
Not Available
14
COVER; STEERING
1860109
9999999
Not Available
15
BUSHING STRG.ARM.
5431967
9999999
Not Available
16
WASHER; FLAT; S.S.
7555837
9999999
Not Available
17
RING RETAINING
7710431
9999999
Not Available

Find the detailed STEERING SL 650 STD B954358 (4932923292A014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
