1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 STD - B954358
4
Parts Catalog
CYLINDER MANIFOLD SL 650 STD B954358 (4932923292B013)
5
Parts Diagram
Parts Catalog
CRANKCASE SL 650 STD B954358 (4932923292B012)
by
CRANKSHAFT PISTON SL 650 STD B954358 (4932923292B014)
CYLINDER MANIFOLD SL 650 STD B954358 (4932923292B013)
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
13
14
15
16
17
17
18
19
20
21
22
1
SWITCH THERMO
3240223
Not Available
2
GASKET
3082937
9999999
Not Available
3
PLUG
3240219
9999999
Not Available
4
BOLT FLANGE
3240075
Not Available
5
OUTLET WATER MANIFOLD
3240195
9999999
Not Available
6
NUT FLANGE(10)
3240058
9999999
Not Available
7
HEAD; CYLINDER
3240190
9999999
Not Available
8
GASKET HEAD
3240191
9999999
Not Available
9
STUD
3240054
9999999
Not Available
10
NUT FLANGE
3240059
7547013
$3,14 Unit Price incl. VAT
11
CYLINDER ASM.
3240189
9999999
Not Available
12
GASKET CYLINDER
3240055
9999999
Not Available
13
SCREW&WASHER
3240066
9999999
Not Available
14
STOPPER
3240065
9999999
Not Available
15
VALVE REED
3240064
9999999
Not Available
16
VALVE ASM. REED
3084147
9999999
Not Available
17
GASKET REED VALVE(10)
3084148
9999999
Not Available
18
BOLT FLANGE
3240062
9999999
Not Available
19
PIPE INTAKE
3240222
9999999
Not Available
20
NUT; FLANGE
3240063
9999999
Not Available
21
PIPE
3240061
9999999
Not Available
22
STUFFER (REED VALVE ASM.)
3240164
9999999
Not Available

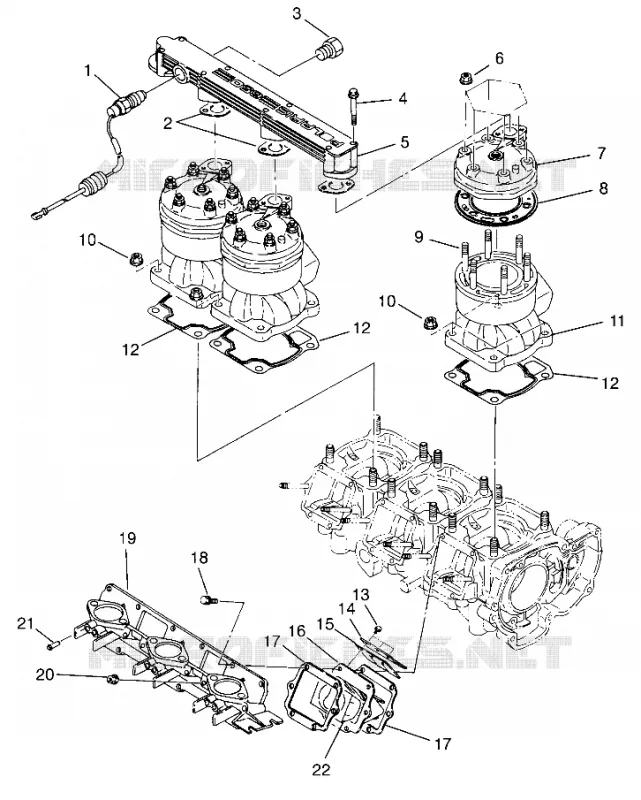

Find the detailed CYLINDER MANIFOLD SL 650 STD B954358 (4932923292B013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
