1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 STD - B954358
4
Parts Catalog
PROPULSION SL 650 STD B954358 (4932923292B002)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SL 650 B954058 (4932923292B001)
by
COOLING SYSTEM SL 650 STD B954358 (4932923292B007)
PROPULSION SL 650 STD B954358 (4932923292B002)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
1
BOLT S.S.
7515366
9999999
Not Available
2
COLLAR
5130938
9999999
Not Available
3
BRG STRG.NOZZLE
5431518
9999999
Not Available
4
SCREEN ENG.INLET
5431523
9999999
Not Available
5
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
6
HOSEWATER
845005423
Not Available
7
EXTENSION TAILCONE 3/4#
5131245
Not Available
8
TUBE SIPHON BILGE
5010293
9999999
Not Available
9
NOZZLE STRG.
5131048
9999999
Not Available
10
BOLT
7515377
9999999
Not Available
11
DESC NOT_AVAILABLE
1350017
Not Available
12
SCREW S.S. ALLEN(10)
7512090
9999999
Not Available
13
WASHER; LOCK
7552615
9999999
Not Available
14
CONE PUMP
5431519
9999999
Not Available
15
WASHER; FLAT
7555861
9999999
Not Available
16
SHAFT; STUB
5020697
9999999
Not Available
17
O-RING(10)
5410819
9999999
Not Available
18
O-RING(10)
5410818
9999999
Not Available
19
O-RING(10)
5410817
9999999
Not Available
20
BEARING
3514008
9999999
Not Available
21
STATOR PUMP
5130983
9999999
Not Available
22
O RING;(10)
5410735
9999999
Not Available
23
PIPE WATER ENGINE
5431655
Not Available
24
SPACER
5010294
9999999
Not Available
25
SEAL BRG STATOR
3610043
9999999
Not Available
26
SPACER IMPELLER
5010295
9999999
Not Available
27
IMPELLER 94-650
5131056
Not Available
28
HOUSING PUMP ( 94)
5130982
9999999
Not Available
29
NUT HEX S.S.(10)
7542455
9999999
Not Available
30
WASHER FLAT
7555841
9999999
Not Available
31
STUDMTG.PUMP
5020804
5020880
Not Available
32
FLAT WASHER
7555846
$10,49 Unit Price incl. VAT
33
WASHER FLAT S.S.(10)
7555853
9999999
Not Available
34
SEAL SIPHON TUBE
5411016
9999999
Not Available
35
PIPE WATER BILGE
5020835
9999999
Not Available
36
ANODE-ZINC
5630598
9999999
Not Available
37
SCREW(10)
7522019
9999999
Not Available

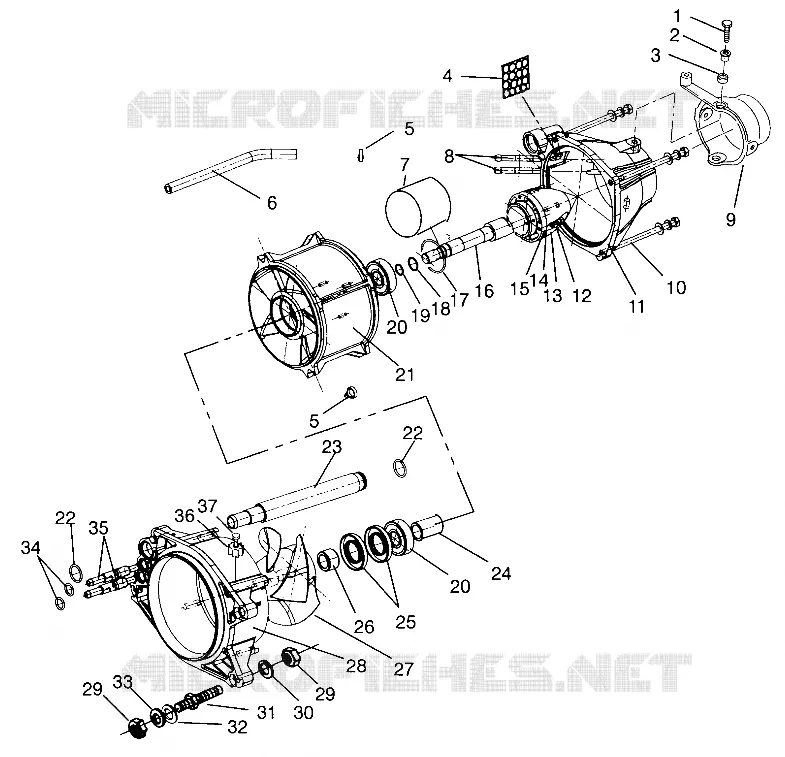

Find the detailed PROPULSION SL 650 STD B954358 (4932923292B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
