Parts Catalog
ELECTRICAL BOX SL 650 STD B954358 (4932923292B010)
5
Parts Diagram
Parts Catalog
WATER INLET SL 650 STD B954358 (4932923292B009)
by
OIL PUMP SL 650 STD B954358 (4932923292C003)
ELECTRICAL BOX SL 650 STD B954358 (4932923292B010)
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
13
13
14
15
14
17
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
30
31
32
33
1
BOLT; S.S.
7512042
9999999
Not Available
2
BOARD TERMINAL
4040055
4040068
$31,80 Unit Price incl. VAT
3
SCREW S.S.(10)
7512072
9999999
Not Available
4
O-RING (ELEC.BOX)
5410912
9999999
Not Available
5
REGULATOR/RECT/CUT-OFF
4060115
9999999
Not Available
6
BOTTOM ELEC.BOX Substituted by 5131256
5131015
Not Available
7
GROMMET SECTION 2-HOLE
5410852
Not Available
8
O-RING(10)
5410818
9999999
Not Available
9
GROMMET SECTION NO HOLE
5410850
9999999
Not Available
10
GROMMET; WIRE
5410775
9999999
Not Available
11
PLATE 6-HOLE CAST
5630497
Not Available
12
BOLT; S.S.
7515118
9999999
Not Available
13
WASHER
7555836
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
DECAL ELECT.BOX RESET
7073734
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
INSUL.CABLE SOL.
5410346
9999999
Not Available
18
CKT.BREAKER 15A.(WATER.)
2434011
9999999
Not Available
19
O-RING
5410725
9999999
Not Available
20
BOOT THREADED
7080461
9999999
Not Available
21
GROMMET COIL
5410677
Not Available
22
TOP ELECT.BOX
5131018
Not Available
23
GROMMET; 16 GA.(10)
5410678
9999999
Not Available
24
PLATE 5-HOLE
5630416
Not Available
25
CONVOLUTED CONDUIT 30 CM
401005130
Not Available
25
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
26
CABLE RED SOL./START.
4010081
Not Available
27
NUT 6 MM. S.S.
7546705
$9,44 Unit Price incl. VAT
28
WASHER LOCK
7552613
9999999
Not Available
29
CABLE;RED;BATT/SOL.
4010082
9999999
Not Available
30
PLATE; 2-HOLE
5630415
9999999
Not Available
31
BRKT RETAINER COIL
5240414
9999999
Not Available
32
BOLT
7515119
9999999
Not Available
33
DECAL WARN HI.VOLT.
7073713
9999999
Not Available

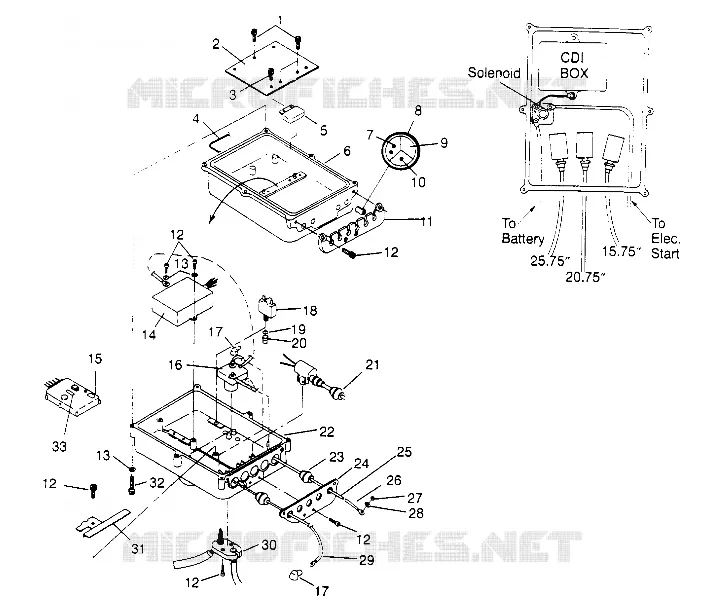

Find the detailed ELECTRICAL BOX SL 650 STD B954358 (4932923292B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
