1
CORE RADIATOR ASSEMBLY
1240444
1241480
$871,49 Unit Price incl. VAT
2
FAN ASSEMBLY; 11 INCHES; ATV
2410413
$493,49 Unit Price incl. VAT
3
FAN SHROUD
5437845
9999999
Not Available
4
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
5
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
6
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
7
TUBE-COOLANT 3/4 ENG IN
5140018
9999999
Not Available
8
HOSE-COOLANT FLARED
5414633
$83,99 Unit Price incl. VAT
9
HOSE-COOLANT FRONT
5414634
9999999
Not Available
10
HOSE-COOLANT FRONT
5414637
9999999
Not Available
11
HOSE-COOLANT REAR ENG IN
5415528
9999999
Not Available
12
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
13
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
14
TUBE-COOLANT 3/4 ENG OUT
5140017
9999999
Not Available
15
COOLANT HOSE; FLARED
5414632
9999999
Not Available
16
COOLANT HOSE; REAR; ENGINE OUT
5415527
$104,99 Unit Price incl. VAT
17
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
18
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
19
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
20
COOLANT TANK
5452401
9999999
Not Available
21
GASKET
5810279
$4,19 Unit Price incl. VAT
22
HOSE-POLY CLEAR 3/8 OD 1/4 ID
845000347
Not Available
23
RADIATOR MOUNT; MATTE BLACK
5256171458
Not Available
24
CLAMP-COOLANT LINES
5258169
9999999
Not Available
25
CLAMP-COOLANT LINES
5258642
9999999
Not Available
26
RADIATOR MOUNT; UPPER; BLACK
5261278329
Not Available
27
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
28
COOLANT REMOTE FILLER; SMALL
5439079
$62,99 Unit Price incl. VAT
29
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
30
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
31
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
32
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
33
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
34
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
35
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
36
FUEL LINE-40 CM
845012040
Not Available

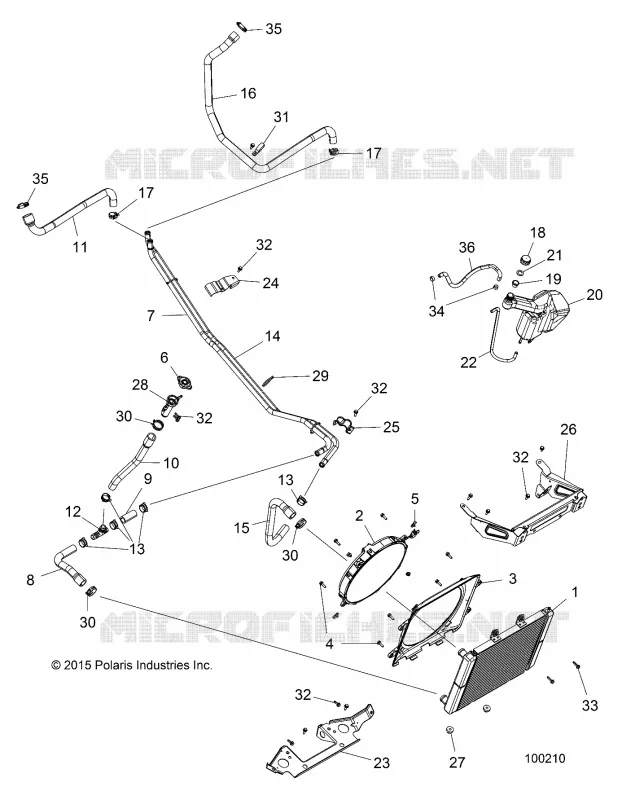

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
