Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
5
Parts Diagram
Parts Catalog
WHEELS, REAR
by
DRIVE TRAIN, CLUTCH, SECONDARY
DRIVE TRAIN, CLUTCH, PRIMARY
13
14
15
16
17
18
19
20
1
BASIC DRIVE CLUTCH ASSEMBLY
1323130
$992,24 Unit Price incl. VAT
2
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
3
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
4
CLUTCH BUTTON
5450940
$14,69 Unit Price incl. VAT
5
DU BUSHING; 1.75
3514492
$54,59 Unit Price incl. VAT
6
NEEDLE BEARING
3514609
$60,89 Unit Price incl. VAT
7
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
8
CLUTCH SPACER
5633000
$52,49 Unit Price incl. VAT
9
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
10
SCR-1/4-20X2 1/4 HX WH GR5-Y
7518349
$2,09 Unit Price incl. VAT
11
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
12
CLUTCH WASHER
7556335
$11,54 Unit Price incl. VAT
13
JAM NUT
7547498
$41,99 Unit Price incl. VAT
14
SHIFT WEIGHT; 29-70; PM
5633321
$62,99 Unit Price incl. VAT
15
WASHER CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
16
SPRING-CLUTCH 74-135
7044516
9999999
Not Available
17
WASHER
7556003
$11,54 Unit Price incl. VAT
18
SCR-M14X1.5X215; HX; 8.8
7519208
7518412
$52,49 Unit Price incl. VAT
19
CLUTCH LIMITER; SPACER
5438963
$7,34 Unit Price incl. VAT
20
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT

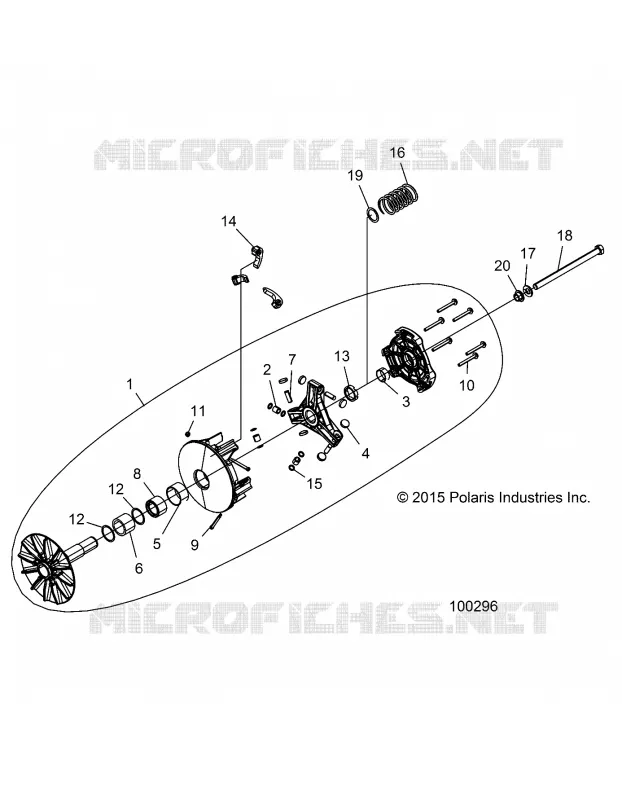

Find the detailed DRIVE TRAIN, CLUTCH, PRIMARY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
