1
Engine displacement
900
2
Year
2016
3
Trim
900 ACE EFI EPS
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
OIL PUMP AND OIL COOLER
by
FRONT SUSPENSION STRUT
STEERING
10
10
11
11
12
13
13
14
15
16
17
18
18
18
18
19
20
20
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
33
34
35
36
36
37
38
39
39
40
40
41
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
6
STEERING RACK BOOT
5415572
$89,24 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM
7518786
$4,19 Unit Price incl. VAT
9
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
10
BUSHING-TILT STEERING
5439154
9999999
Not Available
11
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
12
HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM
7519217
$3,14 Unit Price incl. VAT
13
STEERING BEARING
3514686
$16,79 Unit Price incl. VAT
14
STEERING WHEEL
1824014
2209704
$248,84 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
STEERING WHEEL CAP; GLOSS BLACK
5450255070
Not Available
17
PIVOT TUBE ASSEMBLY; BLACK
1017621
9999999
Not Available
18
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
19
EPS STEERING SHAFT; UPPER
1824286
9999999
Not Available
20
WASHER
7556099
$3,14 Unit Price incl. VAT
21
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
22
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
23
STEERING RACK BOOT
5415572
$89,24 Unit Price incl. VAT
24
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
25
WASHER
7555919
$7,34 Unit Price incl. VAT
26
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
STEERING GEAR BOX ASSEMBLY
1824019
9999999
Not Available
29
ASM-SHOCK TILT STEERING
7044420
$125,99 Unit Price incl. VAT
30
SCR-SHS-M10X1.5-M12X16 RIE
7519355
$19,94 Unit Price incl. VAT
31
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
32
WELD-BRKT BASE;EPS;E-COAT
1020912329
Not Available
33
BRKT-EPS LH E-COAT
5260034329
Not Available
34
SHAFT-STEERING EPS LOWER
1824287
9999999
Not Available
35
ASM-POWER STEERING
2413339
9999999
Not Available
36
HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM
7518450
$3,14 Unit Price incl. VAT
37
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
38
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
39
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
40
FLAT WASHER
7555960
$7,34 Unit Price incl. VAT
41
FOAM-SHIELD
5814248
9999999
Not Available

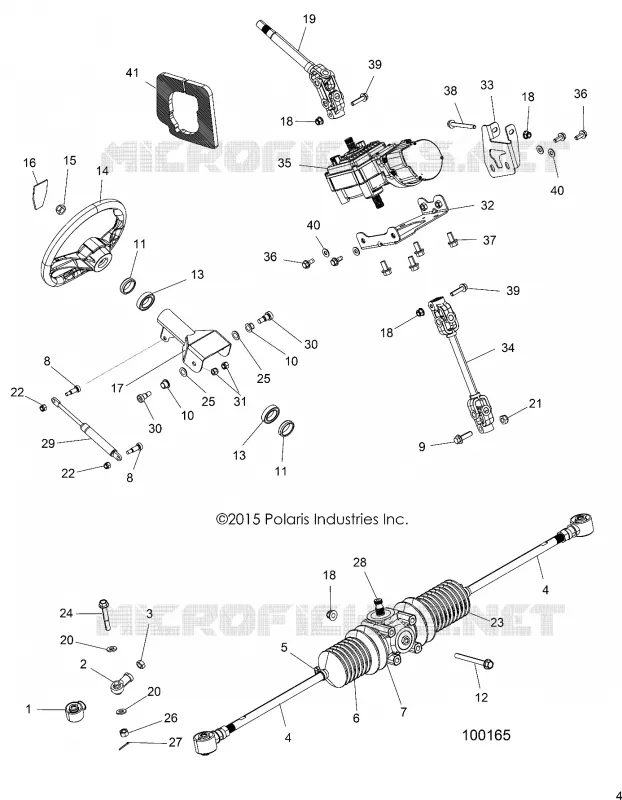

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
