1
Engine displacement
900
2
Year
2016
3
Trim
900 ACE EFI EPS
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, BALANCER
ENGINE, AIR INTAKE SYSTEM
16
17
18
19
20
21
22
23
24
25
1
DUCT-INTAKE AIRBOX
5452344
9999999
Not Available
2
ENGINE INTAKE BOX; RIGHT
5450728
9999999
Not Available
3
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
4
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
5
INTAKE SEAL; AIRBOX
5415155
$10,49 Unit Price incl. VAT
6
AIRBOX COVER
5451097
$104,99 Unit Price incl. VAT
7
AIRBOX
5451098
$272,99 Unit Price incl. VAT
8
AIRBOX STRAP
5451099
$9,44 Unit Price incl. VAT
9
AIRBOX SEAL
5814054
5815300
$52,49 Unit Price incl. VAT
10
K-FILTER-AIR PERF RZX
2881063
2882233
$120,74 Unit Price incl. VAT
10
AIR FILTER
7082115
$57,63 Unit Price incl. VAT
11
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
ASM-INTAKE DUCT
1240975
9999999
Not Available
15
DUCT-INTAKE ENG
5452345
$104,99 Unit Price incl. VAT
16
FITTING-3/4 DOUBLE BARB
7052580
$10,49 Unit Price incl. VAT
17
HOSE CLAMP
7081903
$13,64 Unit Price incl. VAT
18
HOSE-VENT ENG
5415564
9999999
Not Available
19
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
20
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
21
ADHESIVE FOAM SEAL
5814033
$20,99 Unit Price incl. VAT
22
FILTER INTAKE; FOAM
5814026
$26,24 Unit Price incl. VAT
23
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
24
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
25
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

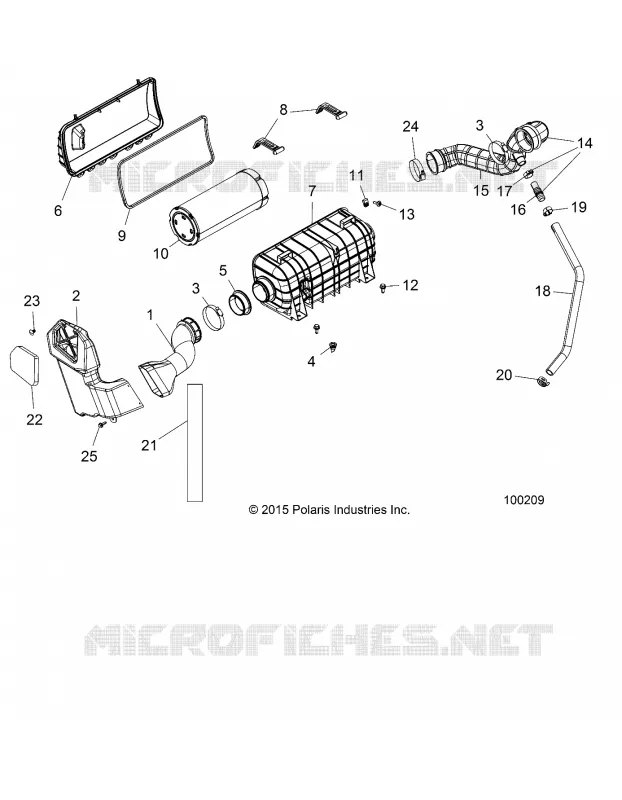

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
