1
Engine displacement
925
2
Year
2020
3
Trim
RZR XP TURBO S VELOCITY
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, HALF SHAFT, REAR
by
ECU / REGULATOR

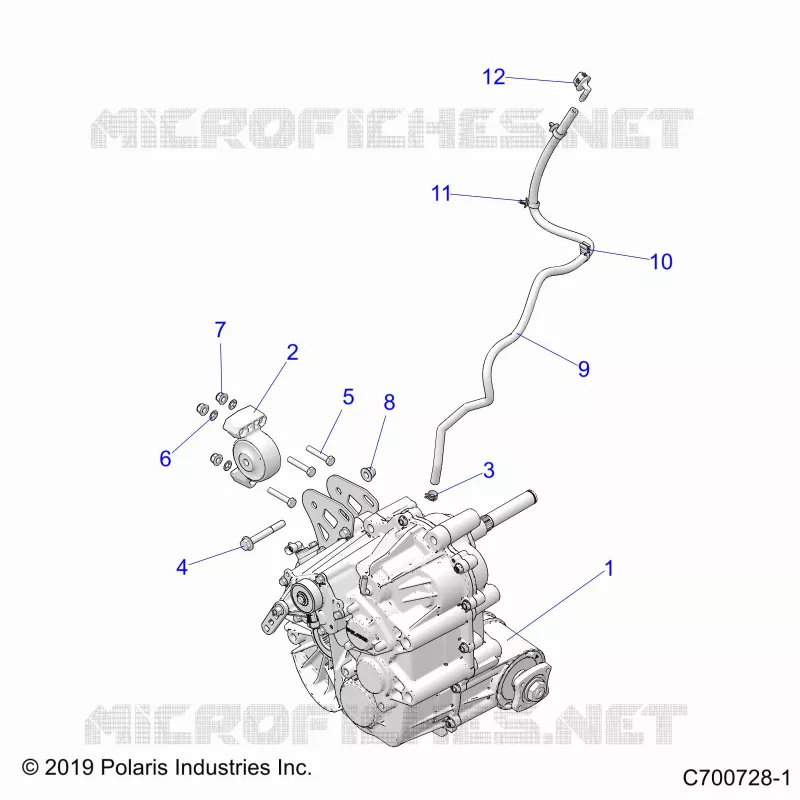

DRIVE TRAIN, MAIN GEARCASE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ISOLATOR MOUNT
1333430
$99,74 Unit Price incl. VAT
3
CLAMP-HOSE 17/32 GREEN
7081432
$7,34 Unit Price incl. VAT
4
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
5
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
6
PALNUT
7547030
$9,44 Unit Price incl. VAT
7
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
8
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
9
FUEL LINE 1/4 SAE #30R7;100CM
8450040100
Not Available
10
CLIP-EDGE 1-3MM THICKNESS
7082428
$9,44 Unit Price incl. VAT
11
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
12
FITTING-VENT LINE;90
5453464
$10,49 Unit Price incl. VAT

Find the detailed DRIVE TRAIN, MAIN GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
