CHASSIS, CAB for POLARIS RZR XP TURBO S VELOCITY from 2020

CHASSIS, CAB

1

BOLSTER WELD; LEFT

1022468458

Not Available

2

BOLSTER WELD; RIGHT

1022469458

Not Available

3

ROPS WELD; MOUNT; SEATBELT; MATTE BLACK

1023678458

Not Available

4

ROPS (ROPS) WELD FRT MT BLK

1025087458

Not Available

5

ROPS (ROPS) WELD RR LFT MT BLK

1024890458

Not Available

6

ROPS WELD; REAR; RIGHT; MATTE BLACK

1024891458

Not Available

7

ROPS; REAR; MATTE BLACK

1024892458

Not Available

8

O-RING 1.549 IN X .103 IN

5412220

$3,66 Unit Price incl. VAT

9

ROPS MOUNT BRACKET; LEFT; MATTE BLACK

5634097458

Not Available

10

ROPS MOUNT BRACKET; RIGHT; MATTE BLACK

5634098458

Not Available

11

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

12

BOLT M10 X 1.5 X 45

7519906

$9,44 Unit Price incl. VAT

13

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519956

$4,19 Unit Price incl. VAT

14

HEX FLANGE NUT; 10 MM X 1.5 MM

7520117

$12,59 Unit Price incl. VAT

15

HEX FLANGE SREW; 10 MM X 1.5 MM X 55 MM

7520212

$19,94 Unit Price incl. VAT

16

SCR-HXFL-M10X1.5X75 10.9 ZPB

7520488

7521333-75

$7,34 Unit Price incl. VAT

17

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

18

HEX NUT; 10 MM X 1.5 MM

7547746

$5,24 Unit Price incl. VAT

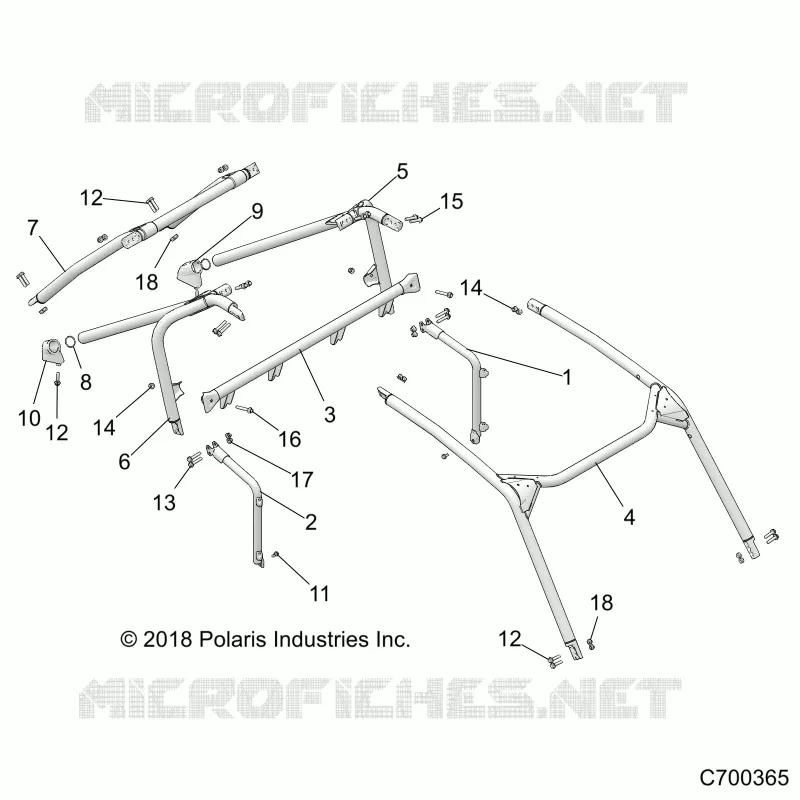

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
