1
COMPLETE GEARCASE ASSEMBLY
1333863
$5 680,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
SCREW
3235206
$13,64 Unit Price incl. VAT
5
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
6
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
7
SCR-HXFL-M8X1.25X70 8.8
3235802
$10,49 Unit Price incl. VAT
8
NUT-HEX-M20X1.5 JAM-RH
3235803
$14,69 Unit Price incl. VAT
9
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
10
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
11
WASHER
3235211
$19,94 Unit Price incl. VAT
12
WASHER
3235212
$25,19 Unit Price incl. VAT
13
WSHR-21.4X39X3.4 LOCKING
3235804
$19,94 Unit Price incl. VAT
14
WASHER-26.26X34X2
3235805
$12,59 Unit Price incl. VAT
15
WASHER 22.7 X 32 X 1.5
3235991
$19,94 Unit Price incl. VAT
16
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
17
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
18
SNAP RING
7710434
$7,34 Unit Price incl. VAT
19
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
20
SNAP RING
3233106
$10,49 Unit Price incl. VAT
21
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
22
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
23
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
24
INTERNAL RETAINING RING
3234741
$17,84 Unit Price incl. VAT
25
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
26
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
27
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
28
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
29
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
30
SPACER; 19.4 X 34.0 X 2
3235883
$41,99 Unit Price incl. VAT
31
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
32
BEARING
3233019
$54,59 Unit Price incl. VAT
33
BEARING
3233020
$80,84 Unit Price incl. VAT
34
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
35
BALL BEARING
3233790
$47,24 Unit Price incl. VAT
36
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
37
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
38
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
39
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
40
BALL BEARING; 17 X 30 X 7
3235807
$60,89 Unit Price incl. VAT
41
BEARING
3235496
$54,59 Unit Price incl. VAT
42
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
43
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
44
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
45
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
46
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
47
SNORKLE TUBE; MACHINED
3235947
$194,24 Unit Price incl. VAT
48
COVER-SECTOR GEARS;MACH
3235809
$73,49 Unit Price incl. VAT
49
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
50
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
51
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
52
DETENT STAR
3235982
$68,24 Unit Price incl. VAT
53
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
54
REVERSE SHAFT; 29 TOOTH
3235224
$272,99 Unit Price incl. VAT
55
GEAR-19T SNORKLE
3235812
$246,74 Unit Price incl. VAT
56
BELLCRANK
3235227
$52,49 Unit Price incl. VAT
57
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
58
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
59
STAGE 2 GEAR; 44 TOOTH
3235229
$173,24 Unit Price incl. VAT
60
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
61
GEAR; 53 TOOTH
3235234
$157,49 Unit Price incl. VAT
62
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
63
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
64
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
65
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
66
OUTPUT SHAFT; FRONT
3235815
$299,24 Unit Price incl. VAT
67
COUPLER
3235816
$78,74 Unit Price incl. VAT
68
GEAR; 64T
3235774
$152,24 Unit Price incl. VAT
69
PARK CAM
3235983
$283,49 Unit Price incl. VAT
70
SHIFT DRUM; MACHINED
3235984
$519,74 Unit Price incl. VAT
71
REVERSE GEAR; 56 TOOTH
3235985
$188,99 Unit Price incl. VAT
72
IDLER GEAR; 39T
3235986
$209,99 Unit Price incl. VAT
73
GEAR-LOW 29T
3235989
$241,49 Unit Price incl. VAT
74
MOUNT BRACKET WELD; REAR
3236144
$73,49 Unit Price incl. VAT
75
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
76
SHIFT FORK SUBASSEMBLY
3235920
$136,49 Unit Price incl. VAT
77
PINION SUBASSEMBLY
3235820
$682,49 Unit Price incl. VAT
78
OUTPUT SUBASSEMBLY
3235847
$509,24 Unit Price incl. VAT
79
CASE SUBASSEMBLY; LEFT
3235949
$834,74 Unit Price incl. VAT
80
INPUT SHAFT; 42 TOOTH/22 TOOTH/29 TOOTH
3235987
$614,24 Unit Price incl. VAT
81
CASE SUBASSEMBLY; RIGHT
3235992
$682,49 Unit Price incl. VAT
82
COVER-BEARING CENTER DRIVE
3235823
$89,24 Unit Price incl. VAT
83
MOUNT BRACKET; REAR
3236145
$73,49 Unit Price incl. VAT
84
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
85
RESISTIVE 2 PIN ROTARY SWITCH
7662299
$209,99 Unit Price incl. VAT
86
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
87
TRIP LIP SEAL; 30 X 75 X 8
3235824
$104,99 Unit Price incl. VAT
88
O-RING; 3.609 X .139
3235948
$12,59 Unit Price incl. VAT
89
O-RING
3234302
$13,64 Unit Price incl. VAT
90
O-RING
3233836
$12,59 Unit Price incl. VAT
91
O-RING
3233828
$12,59 Unit Price incl. VAT
92
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
93
TRIPLE LIP SEAL
3235848
$57,74 Unit Price incl. VAT

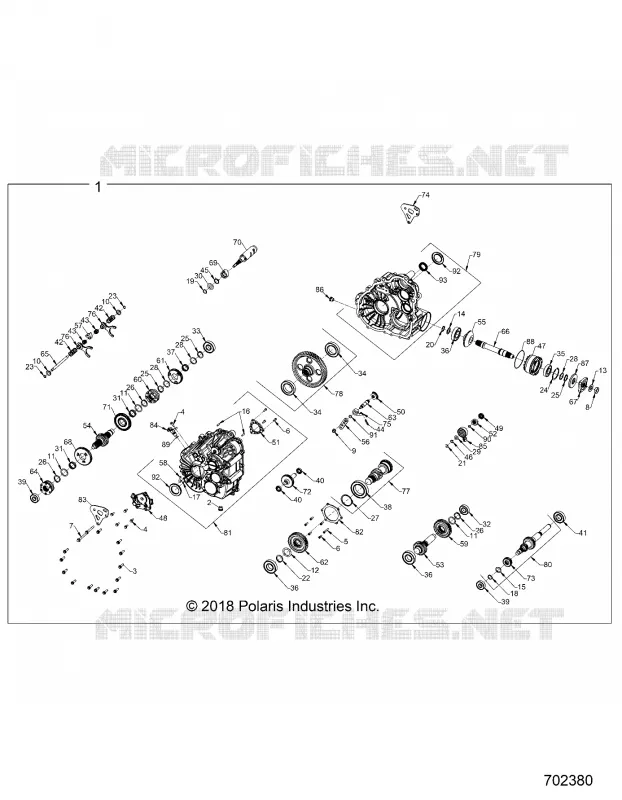

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
