1
Engine displacement
925
2
Year
2020
3
Trim
RZR XP TURBO S VELOCITY
4
Parts Catalog
ENGINE, CRANKSHAFT AND BEARINGS
5
Parts Diagram
Parts Catalog
COOLING, AUX. SYSTEM
by
OIL PAN
ENGINE, CRANKSHAFT AND BEARINGS
1
2
3
4
5
5
5
5
5
6
6
6
6
7
8
8
8
9
10
1
CRANKSHAFT ASSEMBLY; V270
3023056
3024055
$1 889,99 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1205258
1206287
$467,24 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
3023057
3024567
$157,49 Unit Price incl. VAT
4
CONNECTING ROD BOLT 9MM X 1.0MM X 44MM
7520356
$41,99 Unit Price incl. VAT
5
MAIN GEARCASE; 41 MM; GREEN
3514662003
Not Available
5
MAIN BEARING; 41 MM; BLUE
3514662002
Not Available
5
MAIN BEARING; 41 MM; WHITE
3514662001
Not Available
5
MAIN BEARING; RED
3514662005
Not Available
5
MAIN BEARING; 41 MM; YELLOW
3514662004
Not Available
6
BEARING CON ROD; MIDNIGHT BLUE
3514989027
Not Available
6
CON ROD BEARING RED
3514989015
Not Available
6
CONNECTING ROD BEARING; WHITE
3514989016
Not Available
6
CON ROD BEARING; MEDIUM YELLOW
3514989053
Not Available
7
BALL SHAFT BEARING; 38 X 41 X 17.5
3514756
$16,79 Unit Price incl. VAT
8
MAIN BEARING; CENTER; LOWER
3514803004
Not Available
8
MAIN BEARING; CENTER; LOWER; BLUE
3514803002
Not Available
8
MAIN BEARING; CENTER; LOWER; GREEN
3514803003
Not Available
9
CRANKSHAFT SEAL
3610284
3610419
Not Available
10
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT

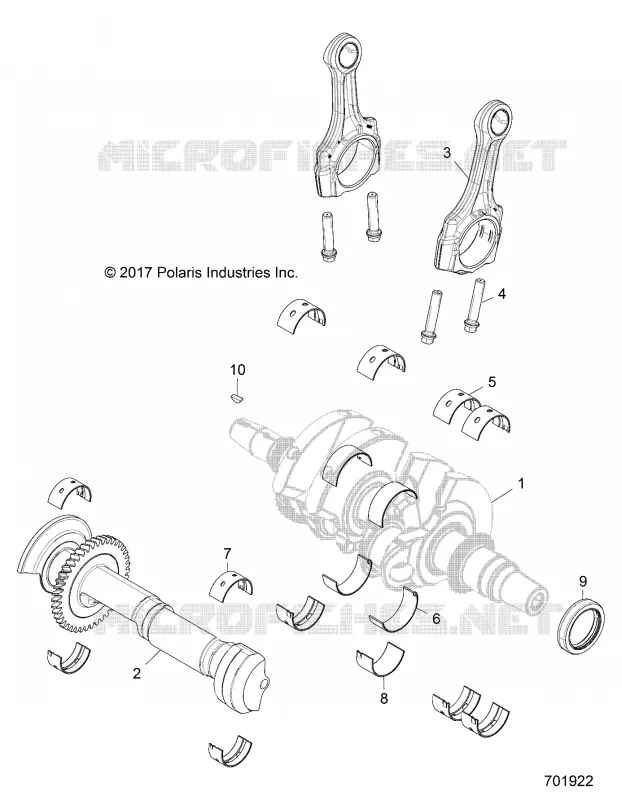

Find the detailed ENGINE, CRANKSHAFT AND BEARINGS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
