1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
STEERING POST ASSEMBLY 4X4 300 W948130 (4926762676B008)
5
Parts Diagram
Parts Catalog
CV JOINT 4X4 300 W948130 (4926762676B003)
by
WISHBONES 4x4 300 W948130 (4926762676B009)
STEERING POST ASSEMBLY 4X4 300 W948130 (4926762676B008)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
14
14
15
16
17
18
19
1
2
3
3
3
3
3
3
3
3
3
4
6
7
7
7
7
8
9
10
11
12
13
14
1
POST STEERING (Incl.10 12)
1843041
Not Available
2
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
BRKT UP.STRG.BUSH BLK.
5222999067
Not Available
5
BUSHING STRG.CONSOLE
5431572
5433416
$16,79 Unit Price incl. VAT
6
BUSHING STRG.CONSOLE
5431573
5433415
$16,79 Unit Price incl. VAT
7
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
10
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
11
PIN; COTTER
7661633
9999999
Not Available
12
PLUG GREASE STRG.
5431574
9999999
Not Available
13
BUSHING
7555878
9999999
Not Available
14
O-RING
5410772
9999999
Not Available
15
STEERING BUSHING LOWER
5431570
9999999
Not Available
16
SCREW; SET
7515508
9999999
Not Available
17
SPACER STRG.POST
5431571
9999999
Not Available
18
NUT HEX SLOTTED
7543203
9999999
Not Available
19
MONOBOLT RIVET
7661632
9999999
Not Available

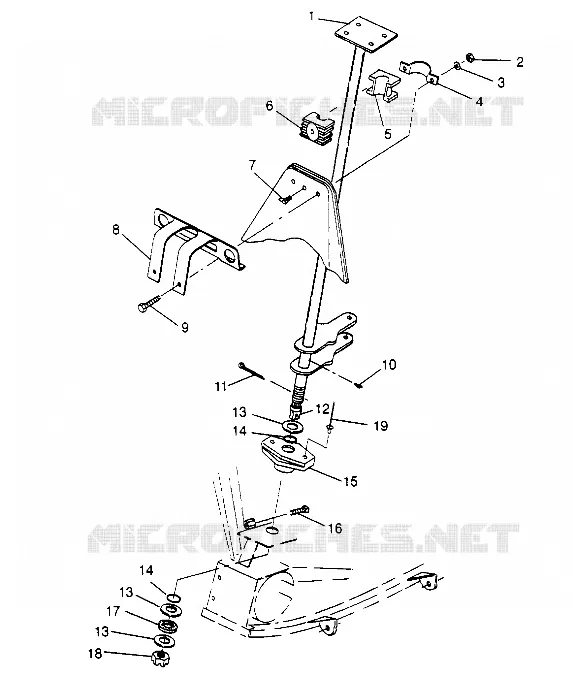

Find the detailed STEERING POST ASSEMBLY 4X4 300 W948130 (4926762676B008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
