1
Engine displacement
800
2
Year
2009
3
Trim
RZR 800 EFI ALL OPTIONS - R09VH76
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS, TAILLIGHTS AND BULBS
by
FRONT BRAKE CALIPER
ENGINE, AIR INTAKE SYSTEM
21
22
23
24
25
26
27
28
29
1
AIR INTAKE ASSEMBLY; LID
1240432
$104,99 Unit Price incl. VAT
1
AIRBOX CAP
5437748
9999999
Not Available
2
AIR BOX SEAL
5813078
9999999
Not Available
3
CLIP-COVER AIRBOX
7710621
7710714
$19,94 Unit Price incl. VAT
4
THROTTLE BODY BOOT
5413581
9999999
Not Available
5
AIRBOX CAN
5436733
9999999
Not Available
6
ENGINE INTAKE DUCT
5437674
9999999
Not Available
7
CRANKCASE FILTER
5812910
$8,39 Unit Price incl. VAT
8
INTAKE DUCT SEAL
5813099
9999999
Not Available
9
FITTING
7052164
$13,64 Unit Price incl. VAT
10
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
11
SCREW
7517317
$6,29 Unit Price incl. VAT
12
SENSOR-T MAP
2410422
2411528
$178,49 Unit Price incl. VAT
13
BRKT-MOUNT AIRBOX
5250302
9999999
Not Available
14
HOSE-BREATHER SLIT 38.4CM
5412615
2202744
$68,24 Unit Price incl. VAT
15
BOX-INTAKE BLK
5437675070
Not Available
16
INTAKE SEAL; 20 IN
5813302
9999999
Not Available
17
FILTER INTAKE ASSEMBLY
1240482
$57,63 Unit Price incl. VAT
18
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
19
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
20
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
21
FOIL-AIRBOX
5813106
9999999
Not Available
22
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
23
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
24
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
25
SCREW
7512399
9999999
Not Available
26
SCREW
7517658
$10,49 Unit Price incl. VAT
27
FOAM-SEAL; AIRBOX; FRT
5813441
9999999
Not Available
28
FOAM-PRIMARY SEAL
5813440
9999999
Not Available
29
FILTER RING
5437936
9999999
Not Available

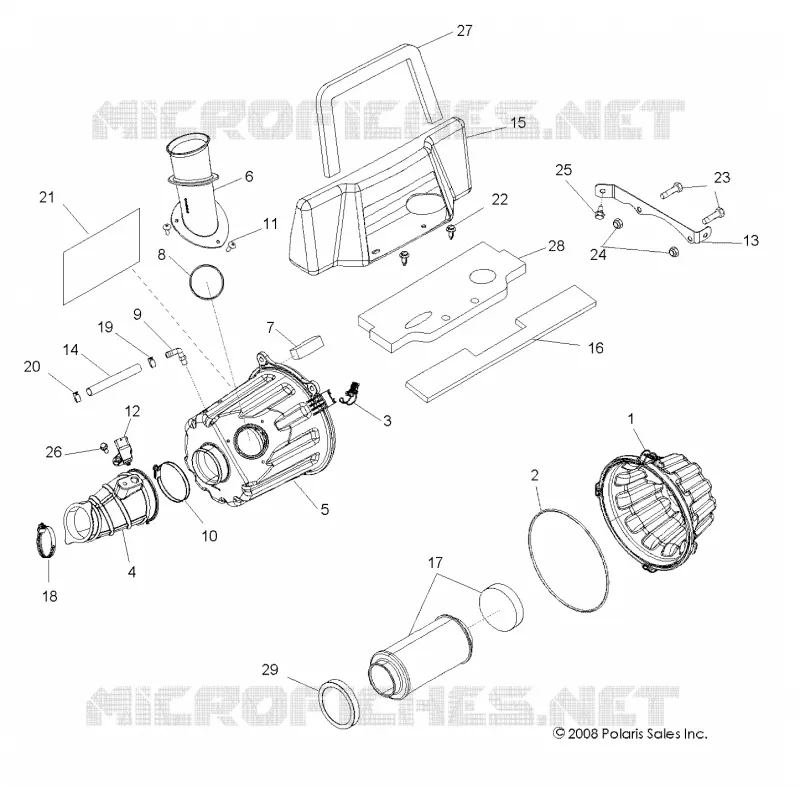

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
