DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RZR 800 EFI ALL OPTIONS - R09VH76 from 2009

CHASSIS, MAIN FRAME AND SKID PLATE

CRANKCASE AND CRANKSHAFT

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

CLUTCH COVER; INNER

5436569

9999999

Not Available

2

AIR CLUTCH DUCT INLET

5436731

9999999

Not Available

3

AIR OUTLET CLUTCH DUCT

5436568

9999999

Not Available

4

DUCT BOOT HI-FLOW

5412636

9999999

Not Available

5

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

6

SCREW

7512094

$3,14 Unit Price incl. VAT

7

OUTER CLUTCH COVER; GLOSS BLACK

5438142070

Not Available

8

CLUTCH COVER SEAL; OUTER

5521738

5526450

$78,74 Unit Price incl. VAT

9

BOLT-M5X0.8X12 HXFLG LK

7518894

$2,09 Unit Price incl. VAT

10

BOOT-CLUTCH INTAKE;2.25 I.D.

5412634

9999999

Not Available

11

CLAMP NARROW BAND

7080909

$14,69 Unit Price incl. VAT

12

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

13

BOLT ASSEMBLY; WASHER

7517599

$10,49 Unit Price incl. VAT

14

NARROW BAND CLAMP; 70-90 MM

7081279

$5,76 Unit Price incl. VAT

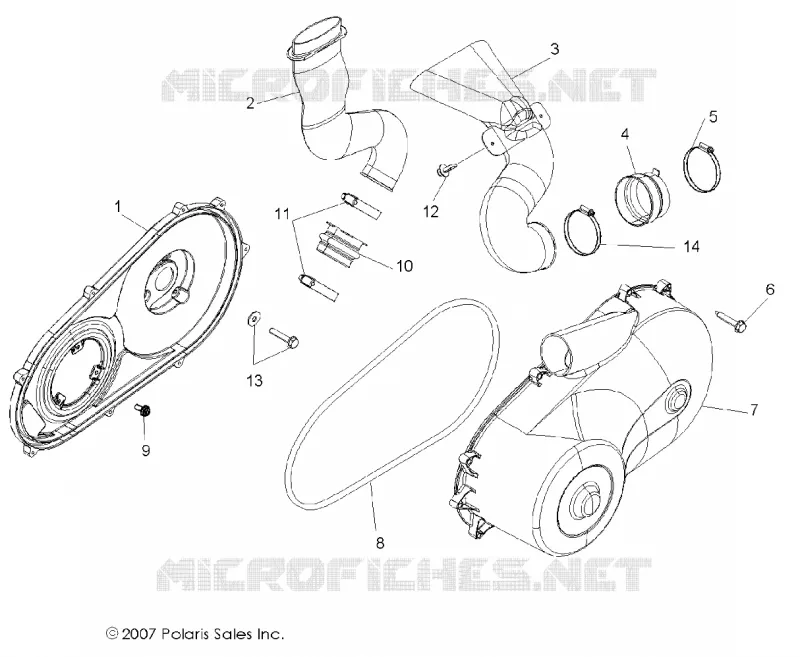

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
